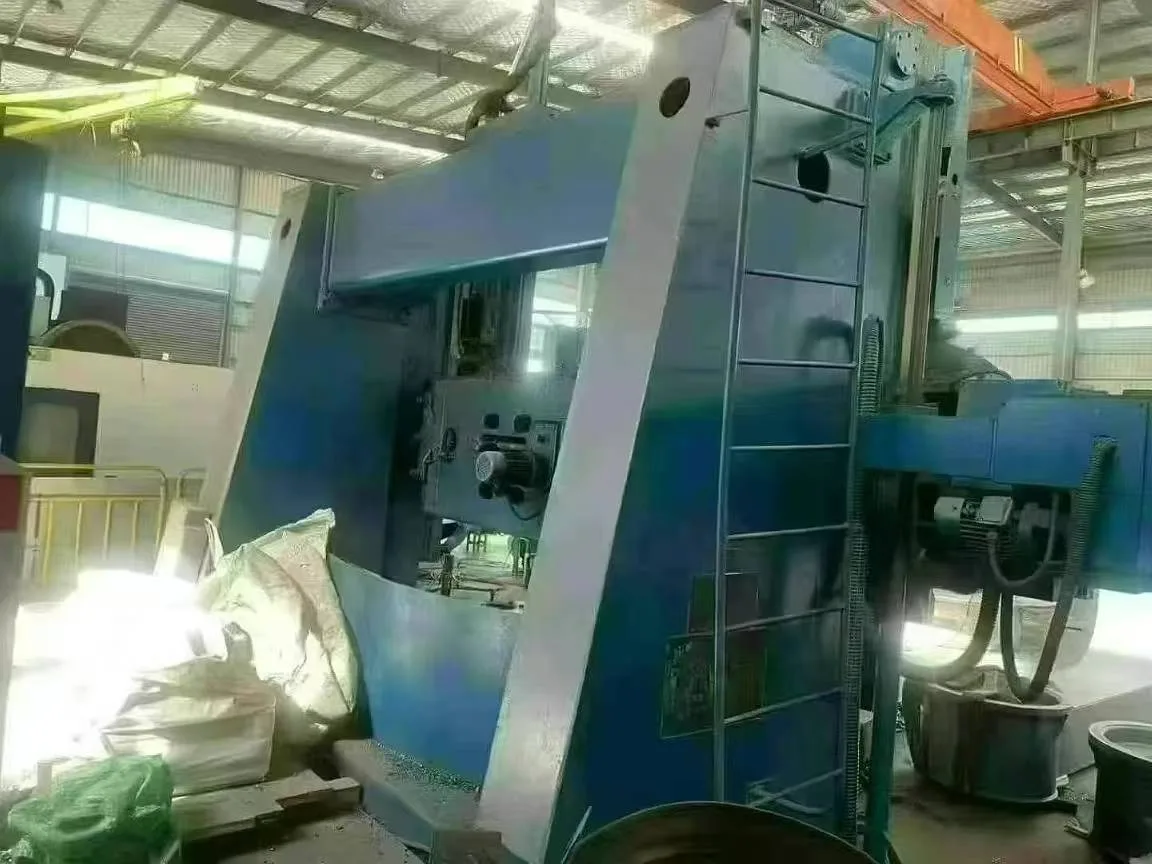

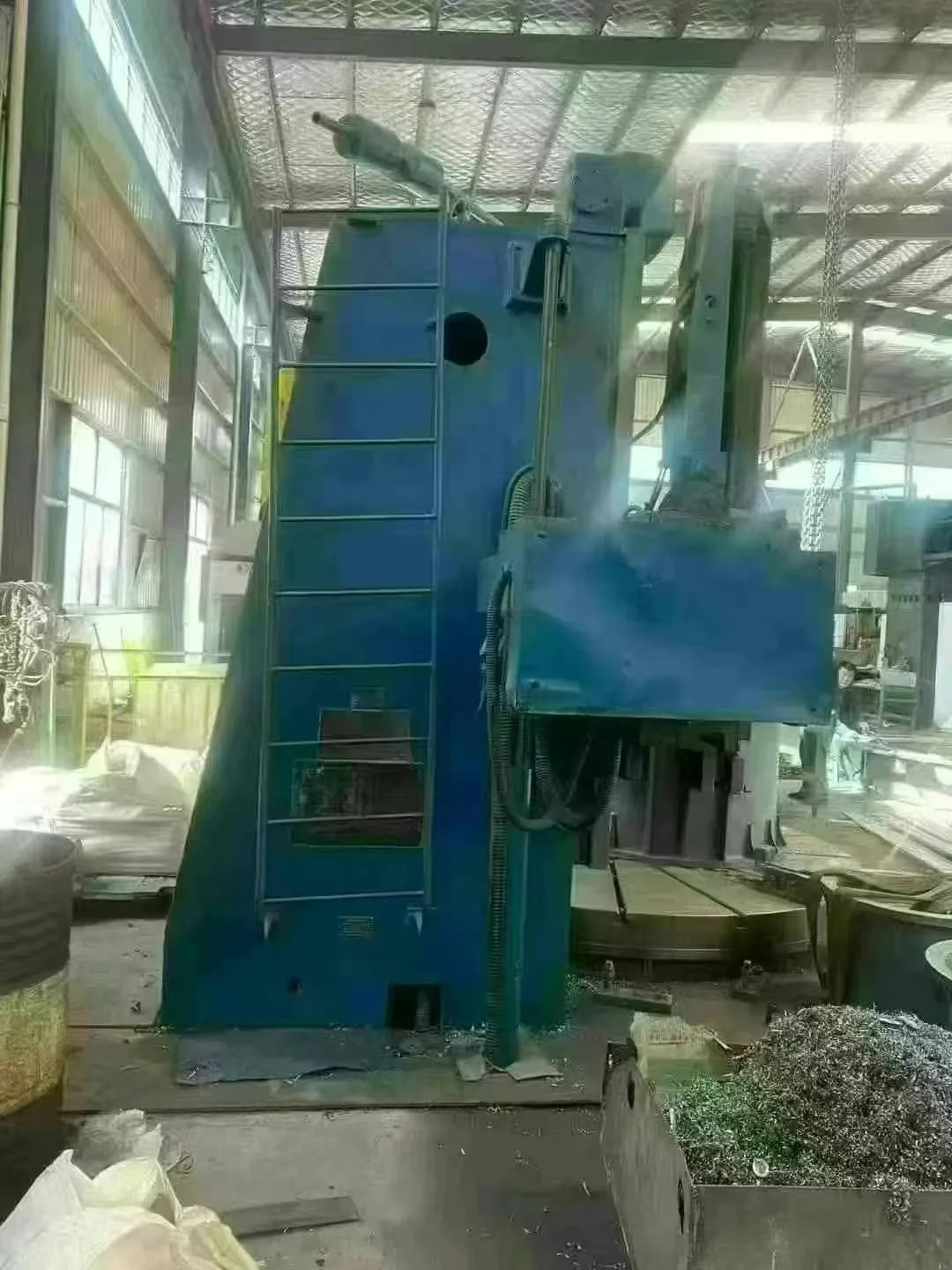

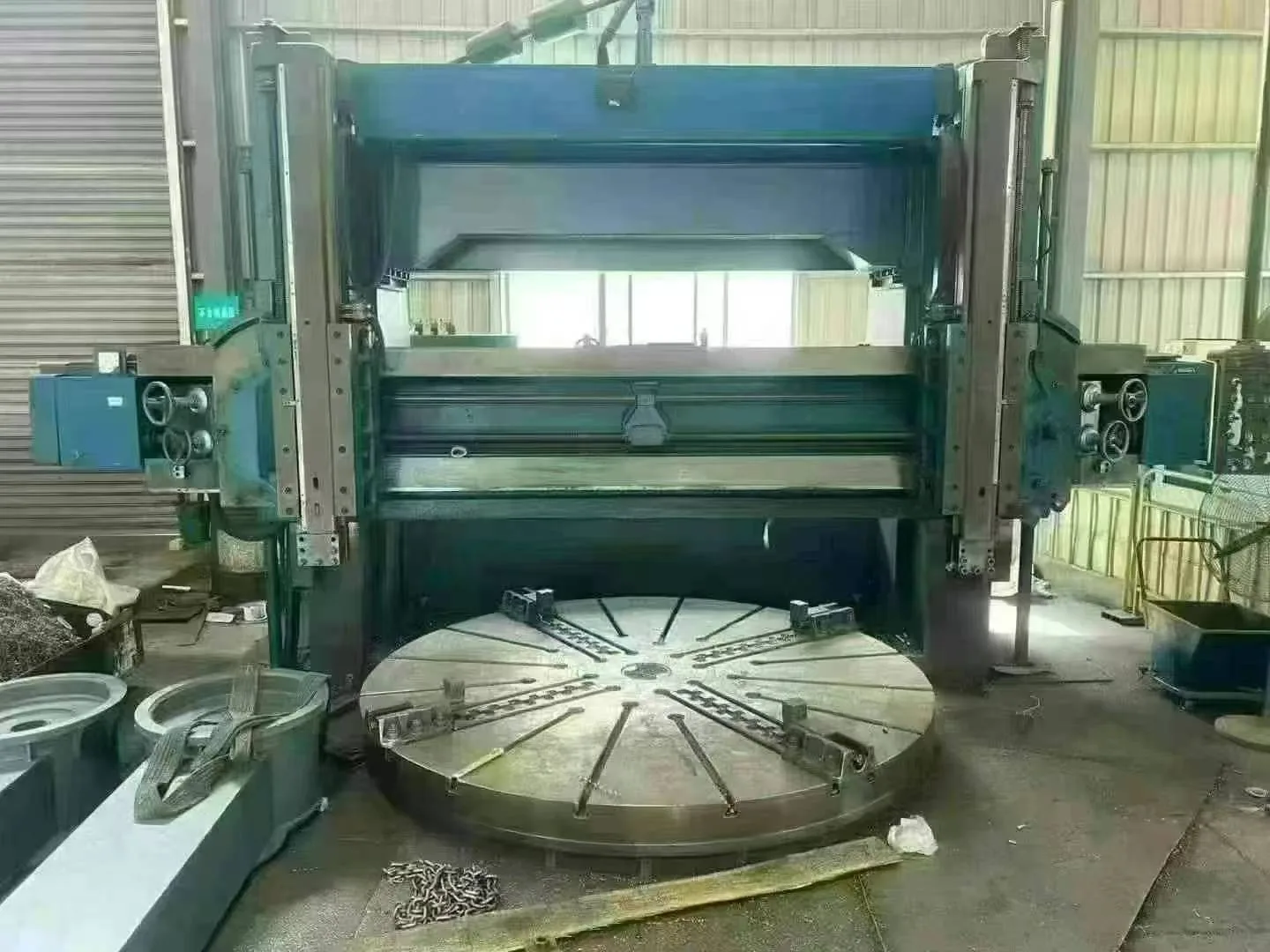

Vertical Turning Lathe 1L532
Ref. No.168
- Brand
- SEDIN
- Model
- 1L532
- Condition
- used
Vertical Turning Lathe
Make:SEDIN 1L532
Table diameter:2800 mm
Swing:3200 mm
Max. work piece height:1600 mm
Max table loading:16 t
Max. ram travel:1200 mm
Max. horizontal travel of carriage:1720 mm
Carriage inclination angle:30 dgr
Carriage feeds number:16
carriages feeds range:0.09 - 16 mm/rev
Feeds of traversal beam:360 mm/min
Max. distance between ram's axis:360 mm
Distance between table and ram:0 - 1780 mm
Distance between table and lower surface of traversal beam: 400 - 1640 mm
Revolution speeds number:18
Table speeds:1.25-63 rpm
Main power:55Kw
Total weight:43 tons
Machine specifications
- Manufacturer
- SEDIN
- Model
- 1L532
- Condition
- used
- Type
- Vertical Turning Lathe
- Brand
- SEDIN
- Model
- 1L532
- Swing
- 3200 mm
- Main Power
- 55 kW
- Table Speeds
- 1.25 - 63 rpm
- Total Weight
- 43 tons
- Max Ram Travel
- 1200 mm
- Table Diameter
- 2800 mm
- Max Table Loading
- 16 t
- Carriage Feeds Range
- 0.09 - 16 mm/rev
- Max Work Piece Height
- 1600 mm
- Carriage Inclination Angle
- 30°
- Max Horizontal Travel Of Carriage
- 1720 mm
