Vertical Turning Lathes

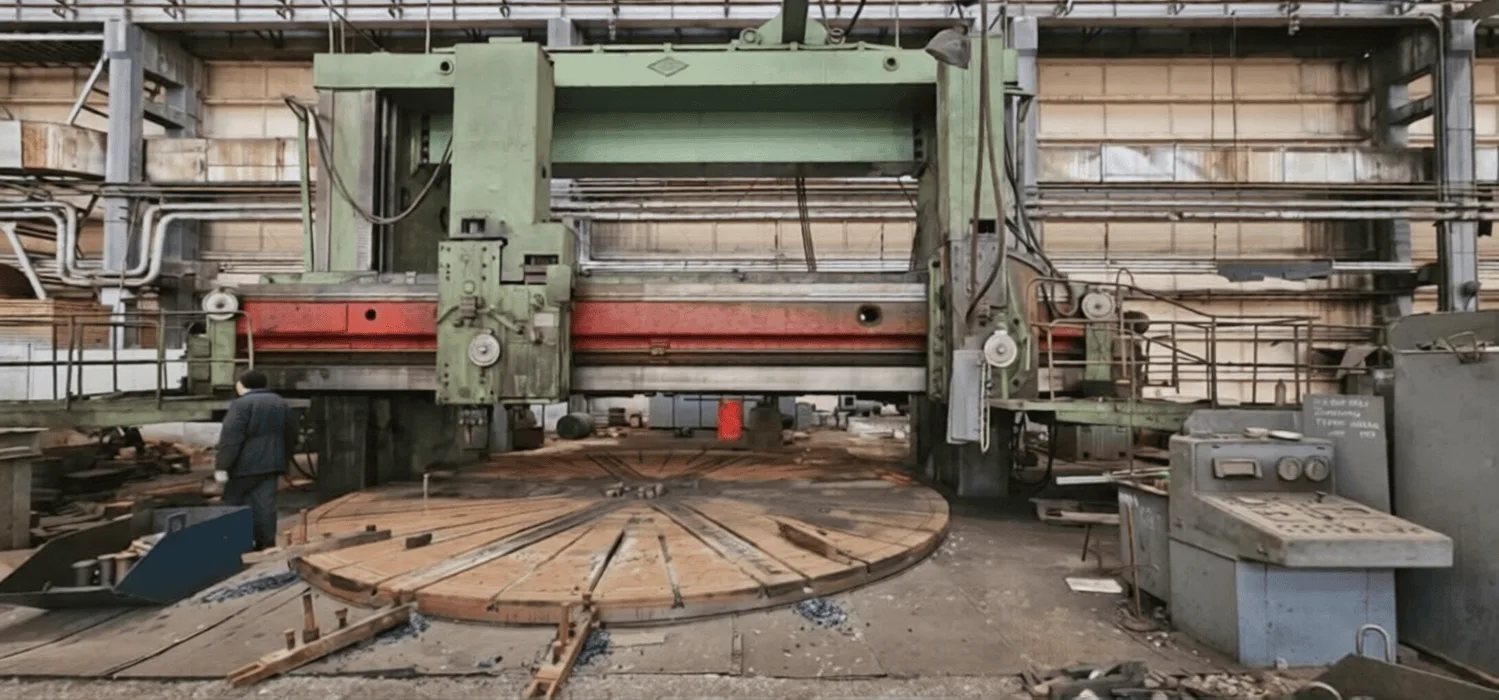

VERTICAL TURNING LATHE – KOLOMNA 1580
Ref. No.79
- Brand
- KOLOMNA
- Model
- 1580
- Condition
- used
- Stock number
- NMC/26/082
Maximum Diameter:8000 mm
Maximum Height:3200 mm

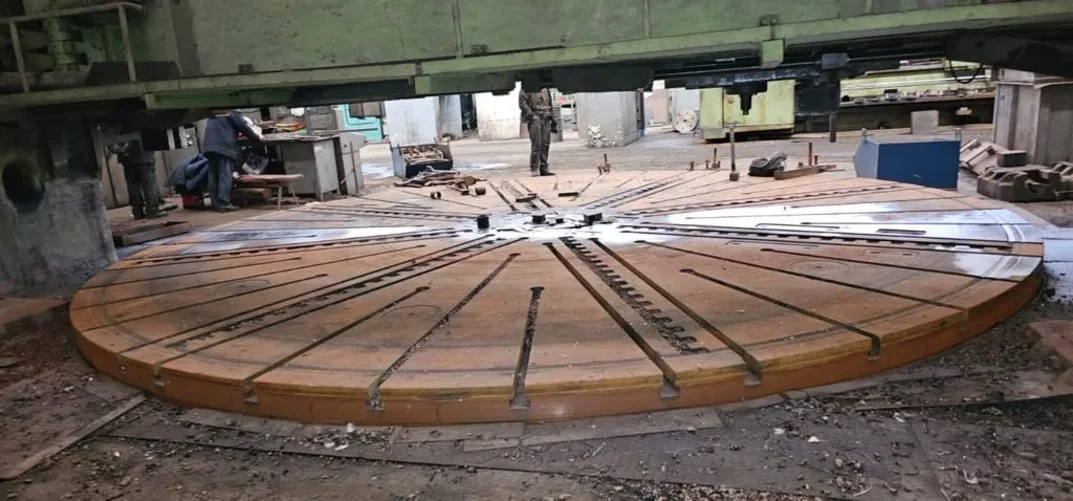

Table Diameter:7100 mm
Maximum Workpiece Weight:271 Tons
Spindle Speed:0.3 – 31.2 RPM
Slider Stroke:2000 mm
Cross Slide Travel:4275 mm
Table Rotation:0.22 – 20.1 RPM
Slide Feed:0.0352 – 285 mm/min
Rapid Feed:2500 mm/min
Crossbeam Feed:300 mm/min
Machine Dimensions:8615 × 17600 × 9800 mm
Machine Weight:258 Tons
Machine specifications
- Manufacturer
- KOLOMNA
- Model
- 1580
- Condition
- used
- Serial / Stock Number
- NMC/26/082
- Name
- VERTICAL TURNING LATHE – KOLOMNA 1580
- Brand
- KOLOMNA
- Model
- 1580
- Remarks
- Extreme Heavy-Duty Capacity, Cost-Effective Alternative to New VTL
- Rapid Feed
- 2500 mm/min
- Slide Feed
- 0.0352 – 285 mm/min
- MachineType
- Conventional
- Slider Stroke
- 2000 mm
- Spindle Speed
- 0.3 – 31.2 RPM
- Condition Note
- Machine is in excellent working condition
- Crossbeam Feed
- 300 mm/min
- Machine Weight
- 258 Tons
- Table Diameter
- 7100 mm
- Table Rotation
- 0.22 – 20.1 RPM
- Cross Slide Travel
- 4275 mm
- Machine Dimensions
- 8615 × 17600 × 9800 mm
- Max Turning Height
- 3200 mm
- Max Turning Diameter
- 8000 mm
- Max Workpiece Weight
- 271 Tons
