Vertical Turning Lathe VTL 1550
Ref. No.160
- Condition
- used

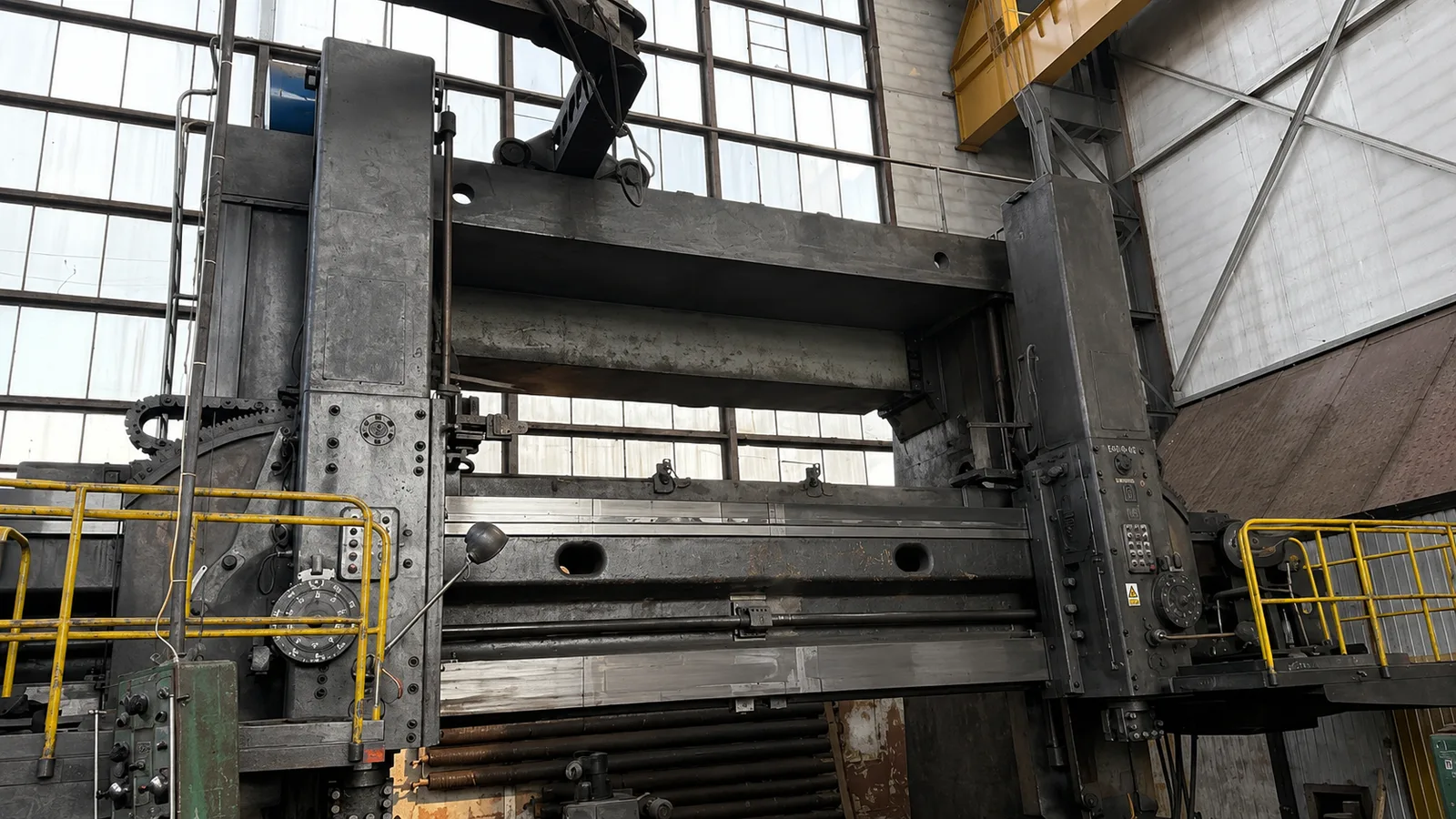

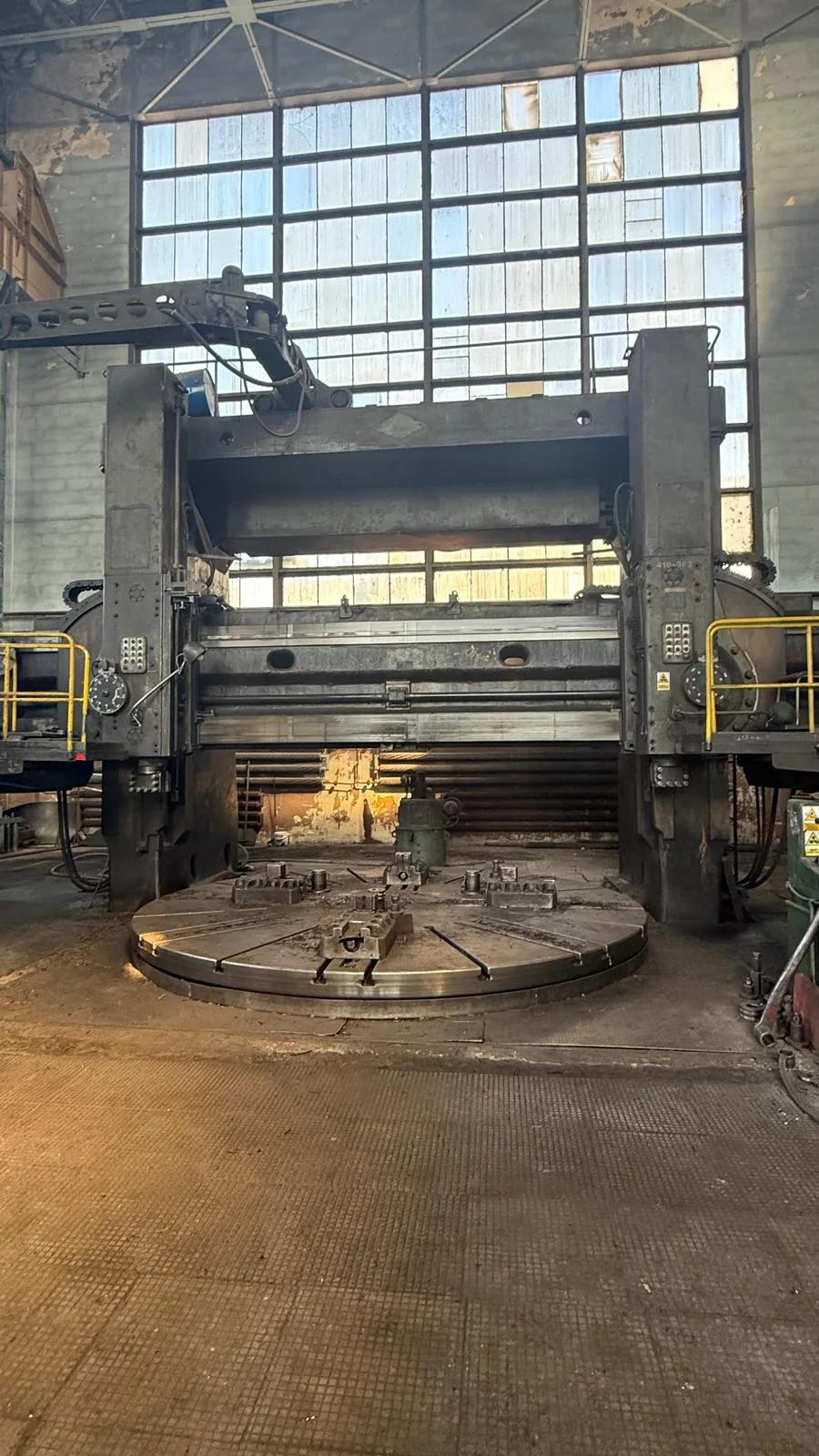

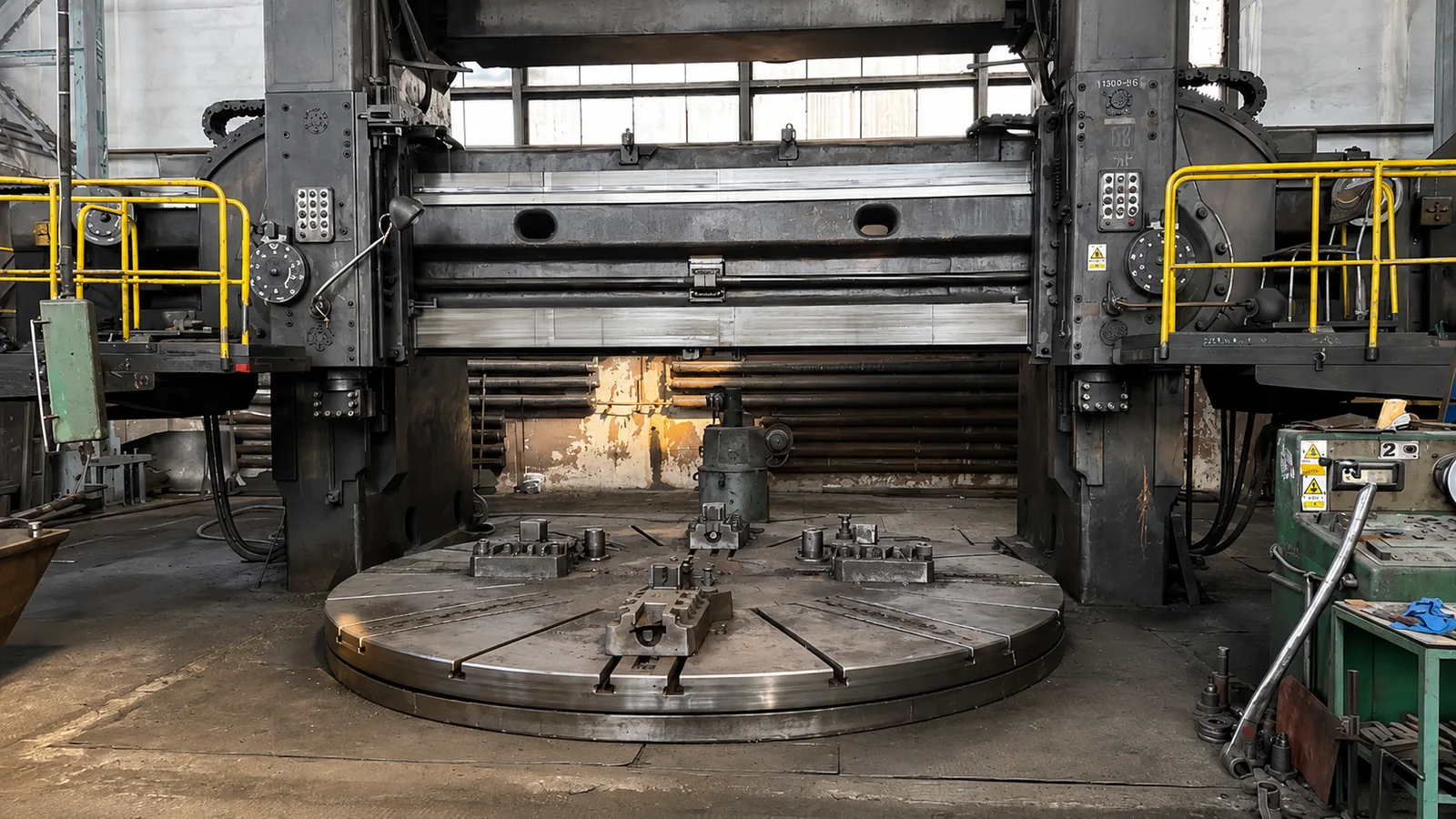

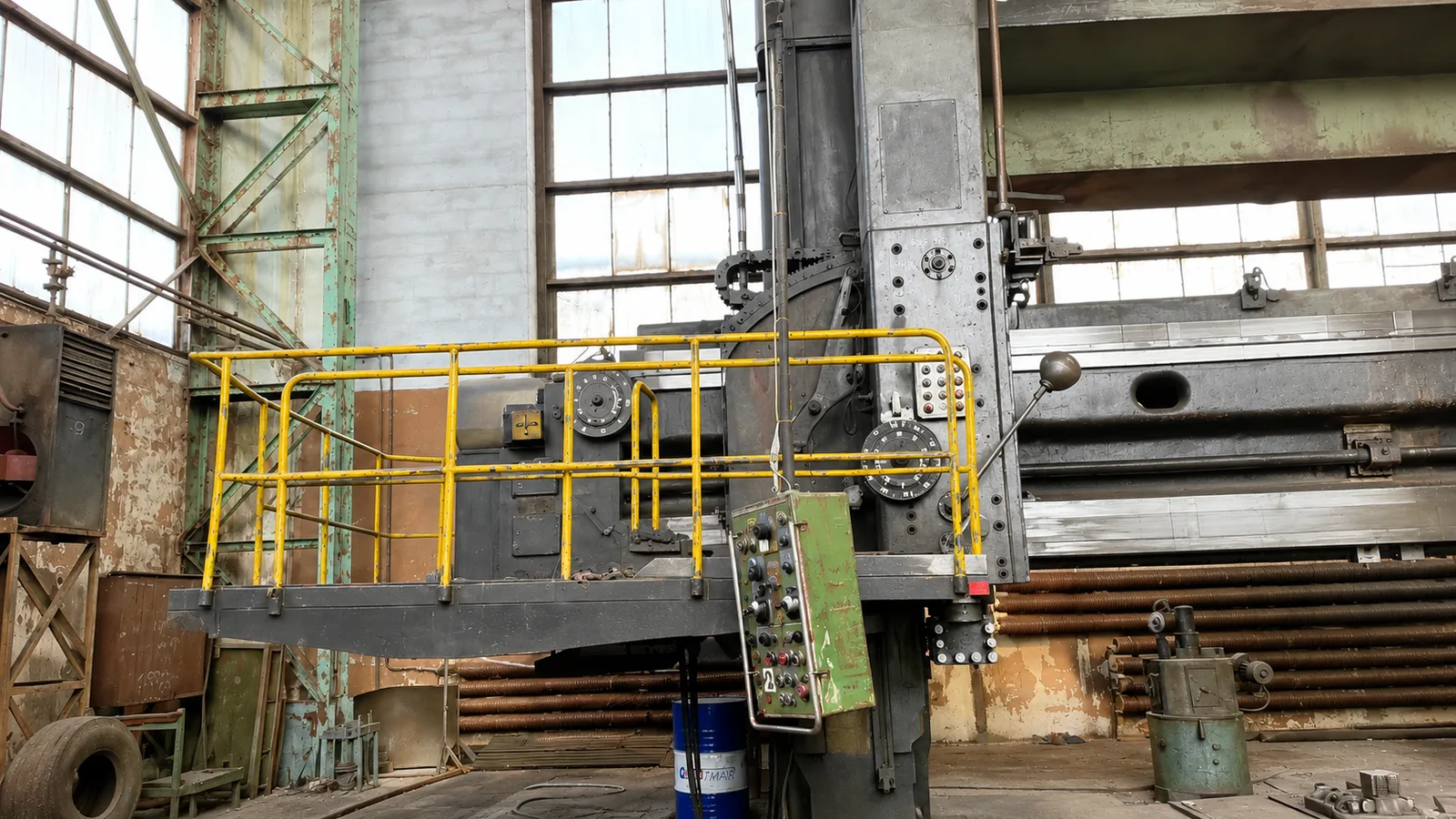

This is a VTL 1550 Vertical Turning Lathe.
The maximum diameter of the machined part is 5000 mm.
The maximum height of the machined part is 2500 mm.

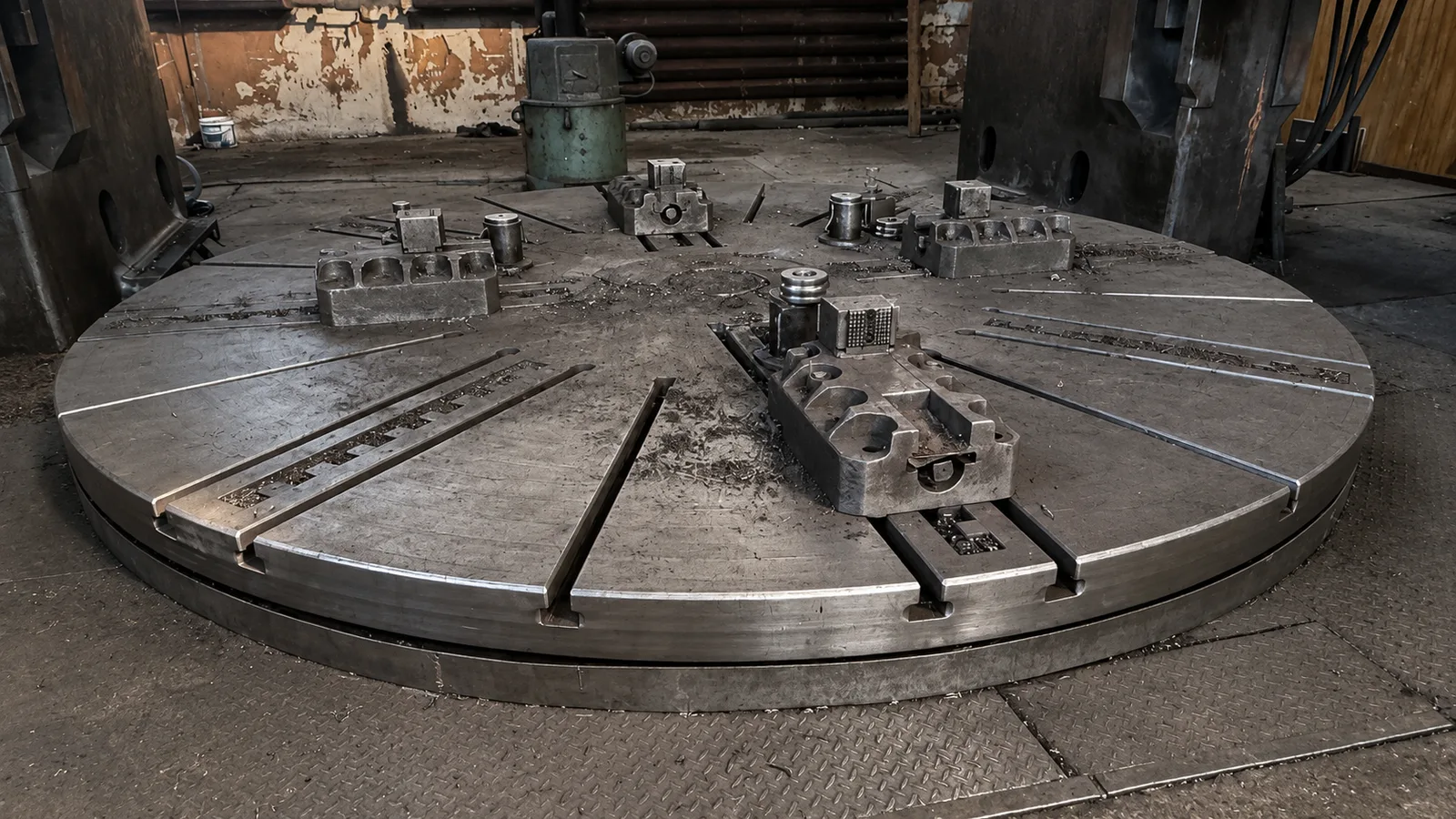

The diameter of the rotary table is 4500 mm.
The maximum weight of the machined part is 100–127 tons.
The torque on the planisphere is 250 kN m.
The main motor power is 110–180 kW.
The spindle speed range is 0.3 to 31.2 RPM.
The machine dimensions are 6600 × 11400 × 8400 mm.
The total height above floor level is 6920 mm.
The total weight of the machine is 140.5 tons.
Machine specifications
- Condition
- used
- Type
- Vertical Turning Lathe
- Model
- VTL 1550
- Total Weight
- 140.5 tons
- Dimensions L W H
- 6600 × 11400 × 8400 mm
- Main Motor Power
- 110–180 kW
- Max Machined Height
- 2500 mm
- Spindle Speed Range
- 0.3 – 31.2 RPM
- Max Workpiece Weight
- 100–127 tons
- Max Machined Diameter
- 5000 mm
- Torque On Planisphere
- 250 kN m
- Total Height Above Floor
- 6920 mm
- Table Diameter Planisphere
- 4500 mm
