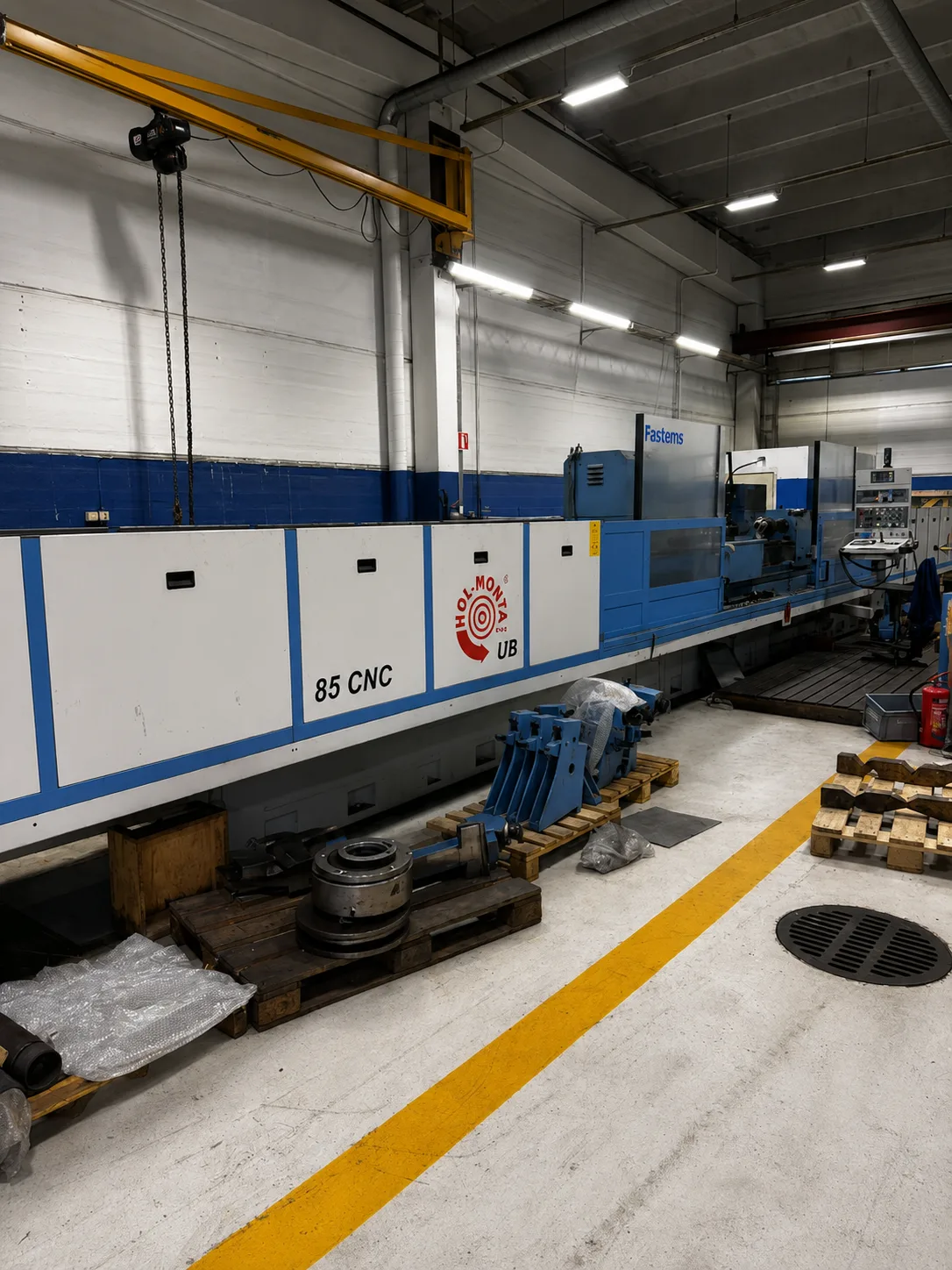

Cylindrical grinding machine TOS-HOL-MONTA UB 85 / 6000 CNC
Ref. No.197
- Brand
- TOS-HOL-MONTA
- Model
- UB 85 / 6000 CNC
- Condition
- used
TOS-HOL-MONTA UB 85 / 6000 CNC CYLINDRICAL GRINDING MACHINE
Brand:TOS-HOL-MONTA
Model:UB 85 / 6000 CNC
Year of Manufacture:2014
Type:CNC
Category:Grinder
Sub-Category:Cylindrical Grinder
CAPACITY
Grinding Diameter:850 mm
Grinding Length:6,000 mm
Maximum Workpiece Weight:2,500 kg
Overhung Weight Capacity (Including 315 mm Chuck): 350 kg
SPEEDS
Grinding Wheel Peripheral Speed:25 – 45 m/s
Carrying Plate Speeds:Stepless Variable
Carrying Plate Speed Range:8 – 156 rpm
DRIVE
Total Nominal Power Required:41 kVA
Workhead Motor Power:7.5 kW
Wheelhead Motor Power:22 kW
Internal Grinding Motor Power:2.2 kW
COOLING SYSTEM
Coolant Tank Capacity:700 Litres
Coolant Pump Output:63 L/min
Magnetic & Paper Filter Output:100 L/min
AIR SUPPLY
Supply Pressure:Max. 0.6 MPa
LUBRICATION SYSTEM
Bed Ways & Ball Screw Lubrication Oil Capacity: 60 Litres
MACHINE WEIGHT
Machine Weight with Accessories (Approx.): 19,200 kg
WORKING RANGE
Diameter Swing:850 mm
Distance Between Centres:6,000 mm
Open Steady Rest Range:40 – 150 mm
Open Steady Rest Range:150 – 350 mm
3-Jaw Chuck Diameter:315 mm
WORKHEAD & TAILSTOCK
Workhead Swivelling:90°
Work Spindle Nose End:ČSN 20 1006 A1-6
Work Spindle Cone:Morse 6
Tailstock Barrel Travel:40 mm
Tailstock Barrel Cone:Morse 6
WHEELHEAD
Wheelhead Swivel Range:-10° / +30°
Cross Movement by Ball Screw:470 mm
Minimum Infeed by Index Control (Related to Diameter): 0.001 mm
GRINDING WHEEL
Grinding Wheel Dimensions:750 × 100 × 305 mm
Partially Worn Wheel Diameter:650 mm
Worn-Out Wheel Diameter:570 mm
TABLE
Table Swivel:±2°
Minimum Table Movement:0.005 mm
Infinitely Variable Table Speed:0.05 – 6 m/min
Rapid Table Traverse Speed:6 m/min
Dressing Speed:0.05 – 6 m/min
