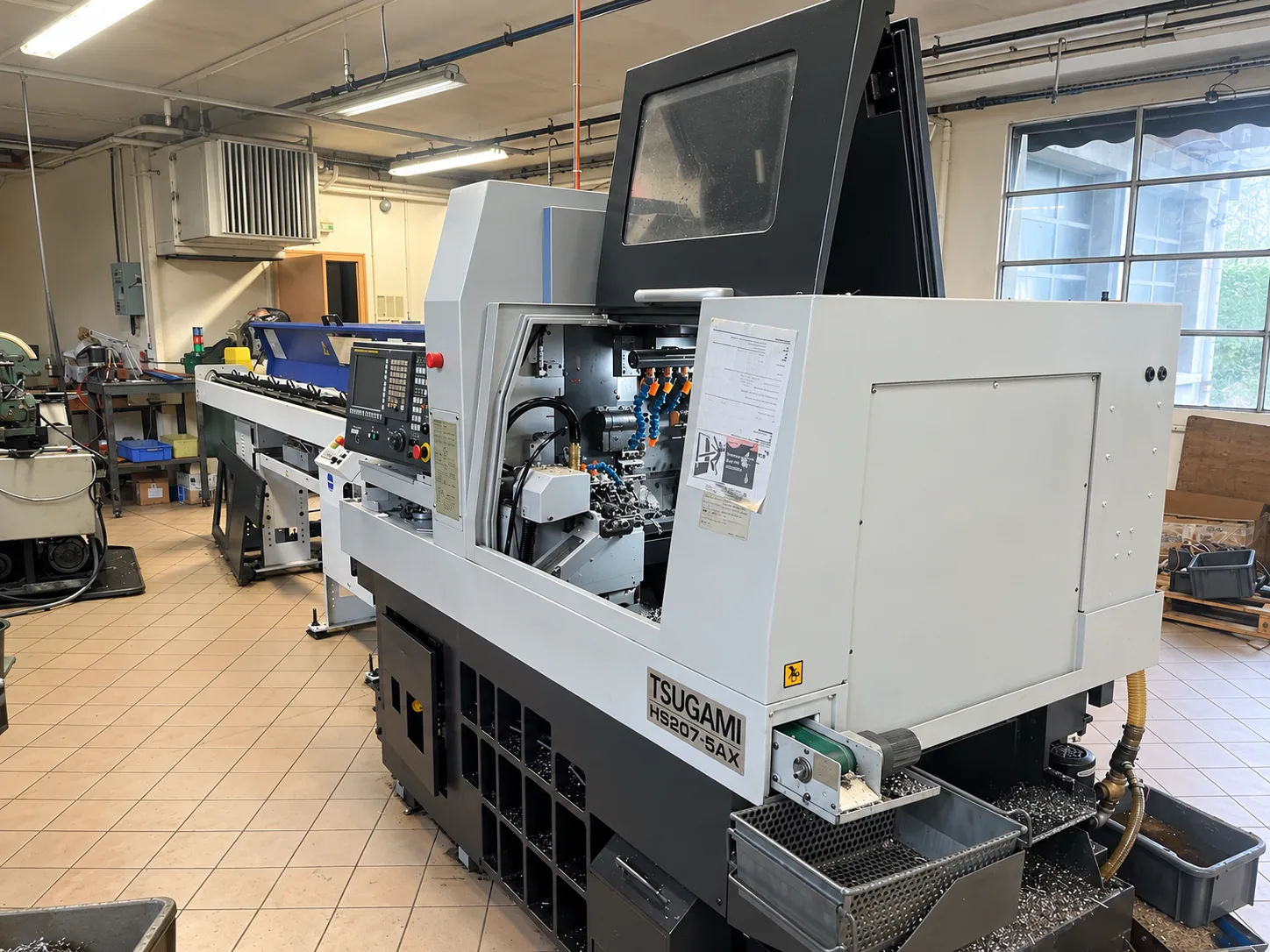

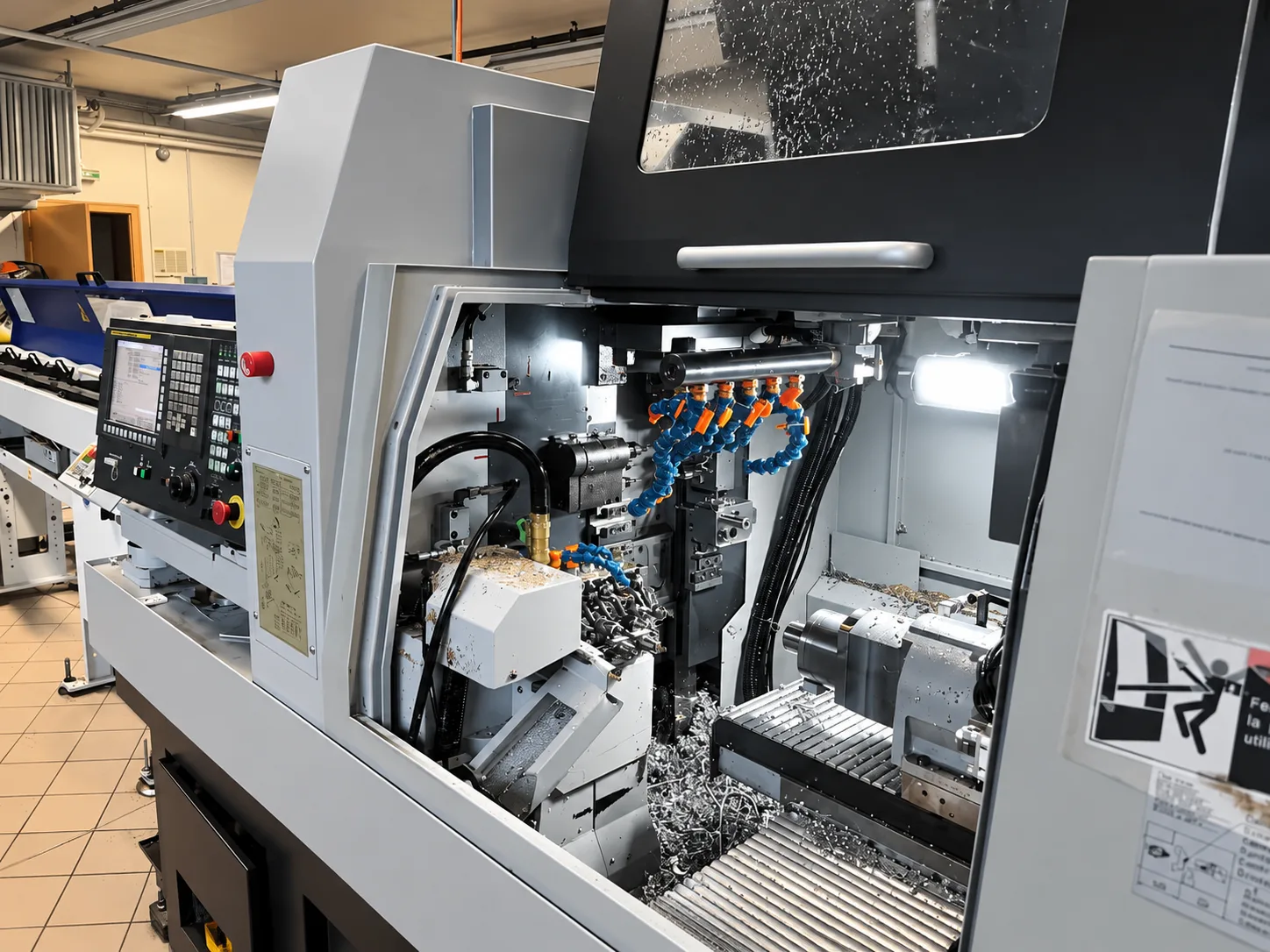

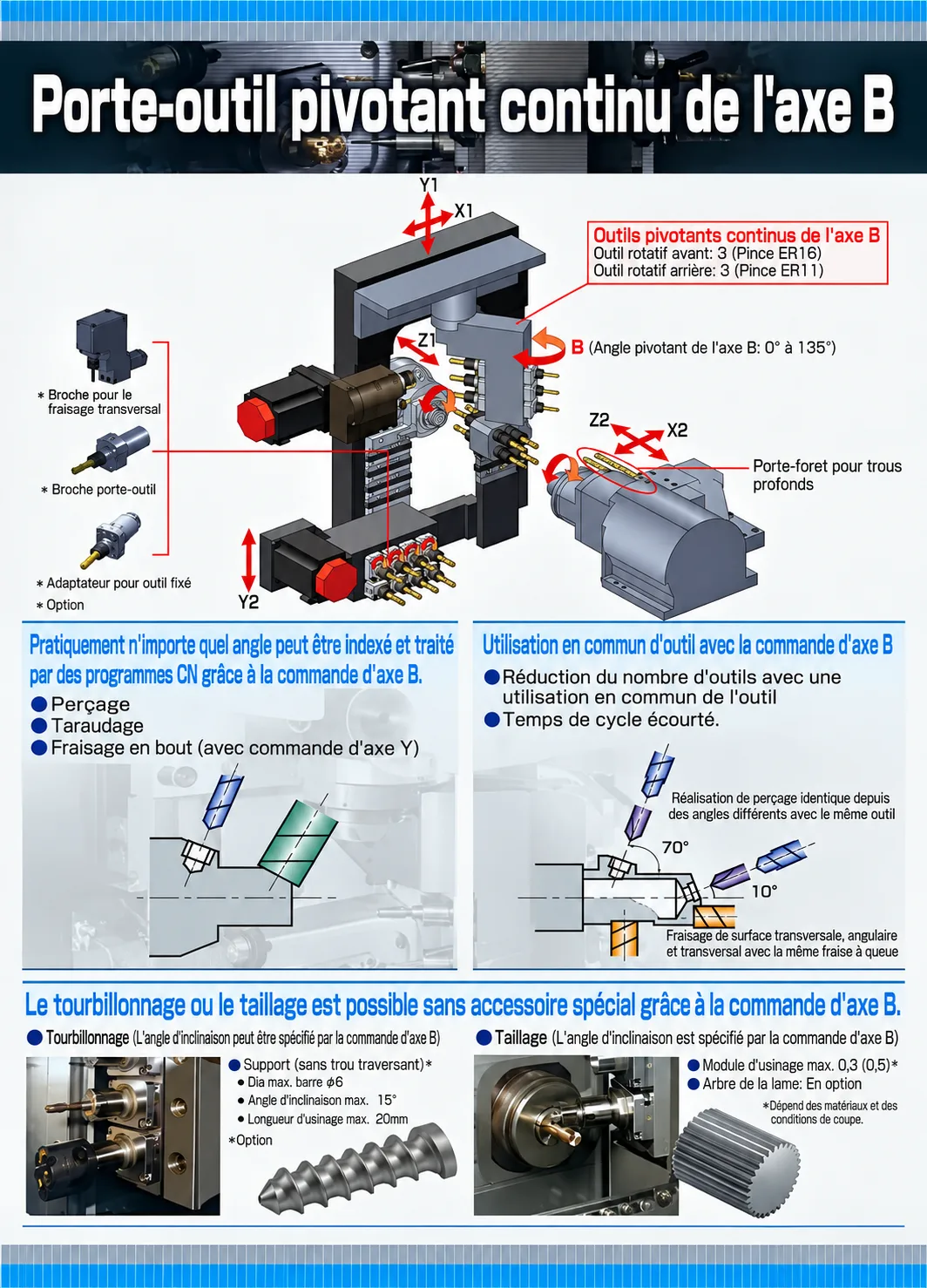

TSUGAMI HS207-5AX CNC Multi-Axis Turn-Mill Center
Ref. No.243
- Brand
- TSUGAMI
- Model
- HS207-5AX
- Condition
- used
Machine Name:CNC Multi-Axis Turn-Mill Center
Brand:TSUGAMI
Model:HS207-5AX
Year:2018
Control:FANUC 31iA
Grinding Bar Clamping Diameter:Ø3 to Ø20 mm
Maximum Grinding Length:250 mm
Grinding Wheel Diameter:80 mm (Double Grinding Wheel (OP1))
Grinding Wheel Diameter:210 mm (Double Grinding Wheel for Roughing and Finishing (OP1))
Grinding Wheel Diameter:45 mm (Grinding Wheel for Grinding Flats (OP1))
Maximum Grinding Wheel Pressure Diameter: Ø110
Minimum Grinding Wheel Pressure Diameter: Ø110
Minimum Grinding Wheel Pressure Diameter: Ø20
Maximum Counter-Grinding Wheel Pressure Diameter: Ø8
Maximum Counter-Grinding Wheel Thread Diameter: M6
Maximum Transverse Grinding Diameter:Ø6
Maximum Grinding Diameter:M5
Maximum B-Axis Grinding Wheel Tapping Diameter: M5
Maximum Grinding Wheel Speed:5000 tr/min
Grinding Wheel Speed:200 à 10000 tr/min
Counter-Grinding Wheel Speed:200 à 10000 tr/min
Number of Grinding Wheels:35
Tool Dimensions:□12 mm × 100 mm
Rapid Feed Speed:32 m/min (X1, Y1: 24 m/min, Y2: 15 m/min)
Grinding Wheel Motor:2.2/3.7 kW
Counter-Grinding Wheel Motor:1.5/2.2 kW
Transverse Grinding Motor:0.75 kW
Pivoting Grinding Wheel Motor:1.0 kW
Machine Weight:3.3 Ton
Power Supply:16 kVA

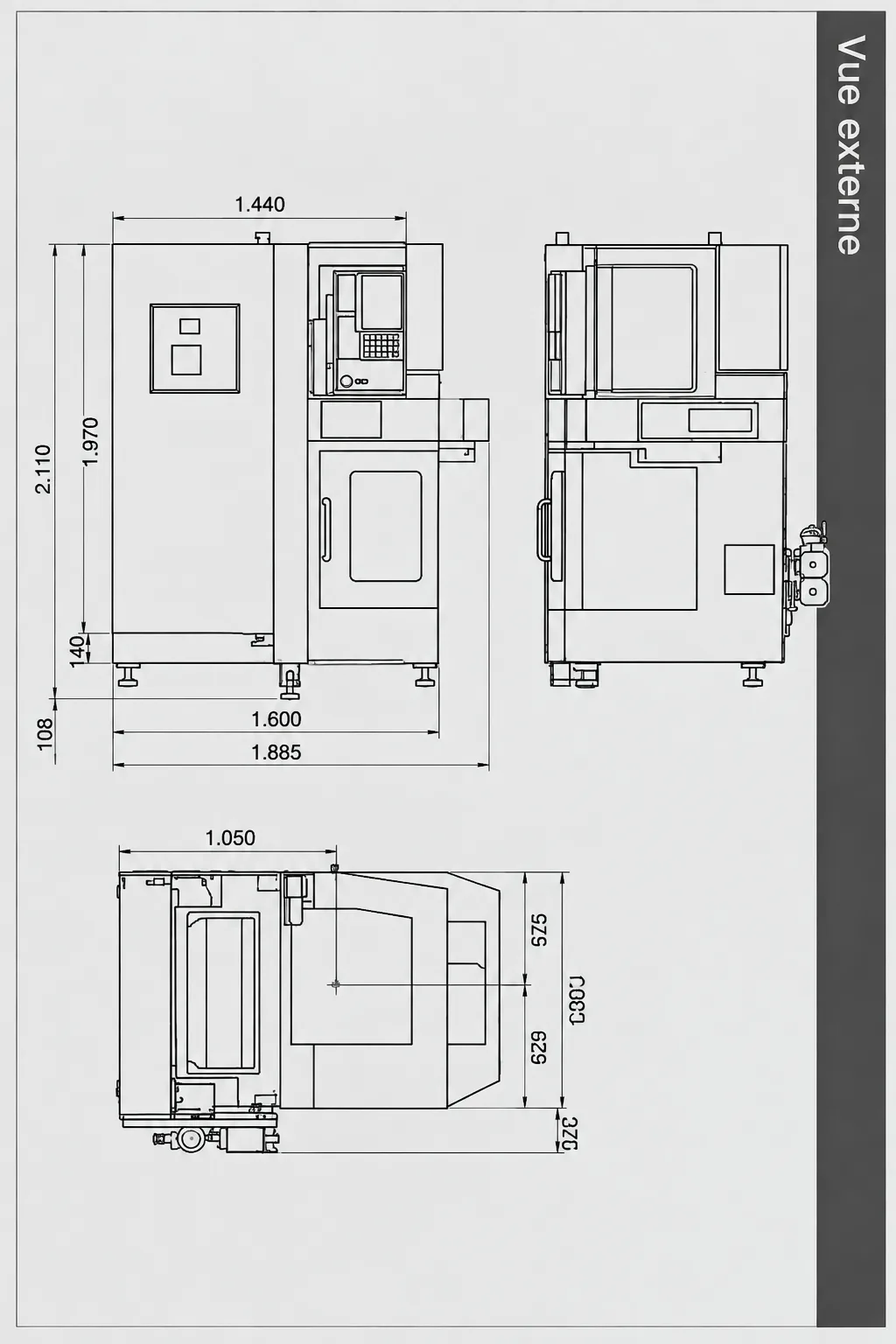

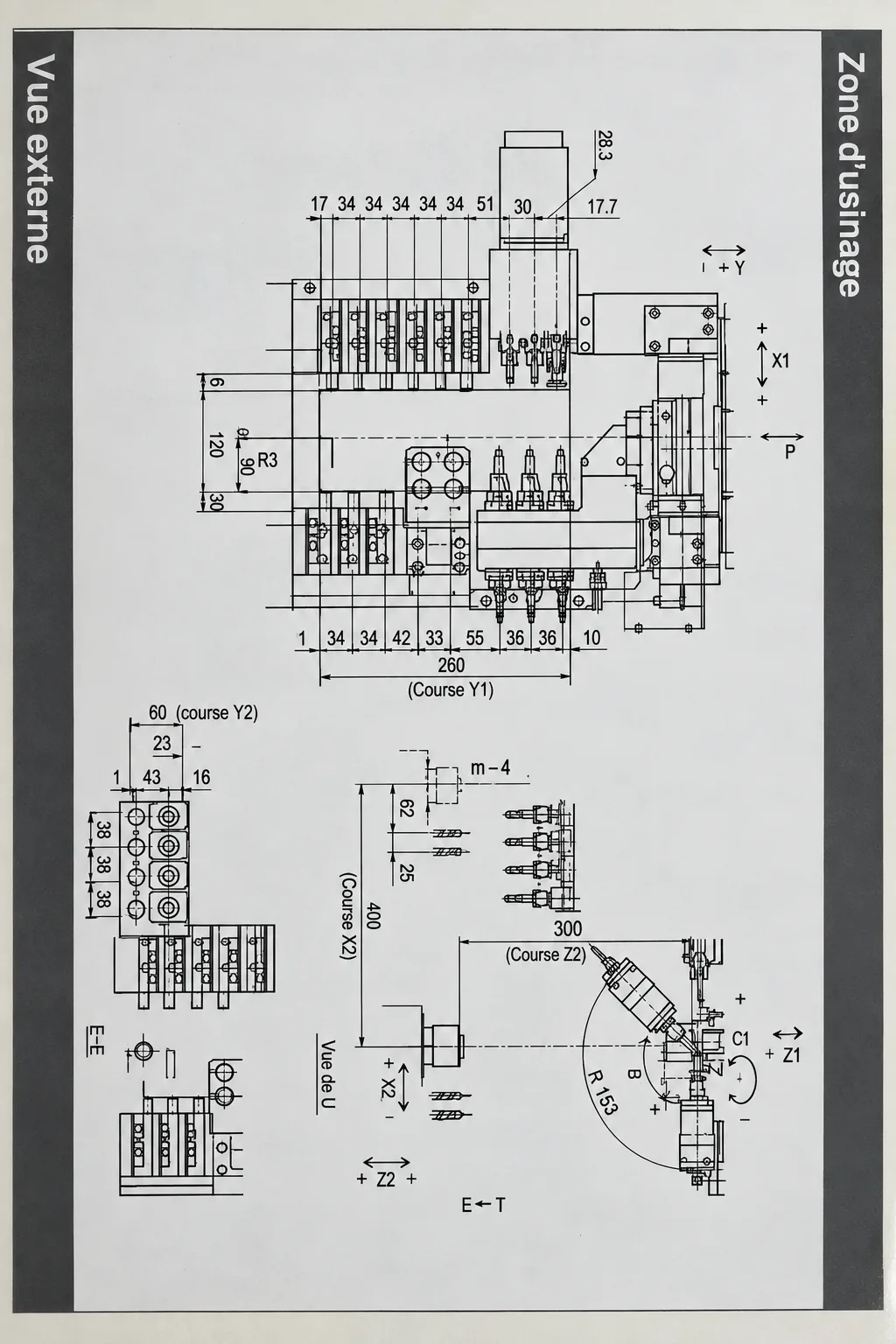

Machine Dimensions (L × W × H):2110 × 1260 × 1885 mm
CN Unit:FANUC 31iA
Axis Names:X1, Z1, Y1, X2, Z2, Y2, C1, C2, B1
Minimum Input Increment:0.001 mm (X1 and X2 axis diameter value)
Smallest Instruction Increment:X Axis X1/X2: 0.0005 mm, Others: 0.001 mm
Maximum Programmable Value:±8 digits
Interpolation Method:Linear/Circular
Rapid Feed Speed:32 m/min (X axis 24 m/min, Y axis 15 m/min)
Feed Speed:1 to 6000 mm/min
Feed Speed Correction:0 to 150% in 10% increments
Dwell:G04 0 to 99999.999
ABS/INC Instruction:X, Z, Y, C, B: Absolute; U, W, V, H: Relative
Tool Compensation Value:±6 digits
Tool Compensation Pairs:99

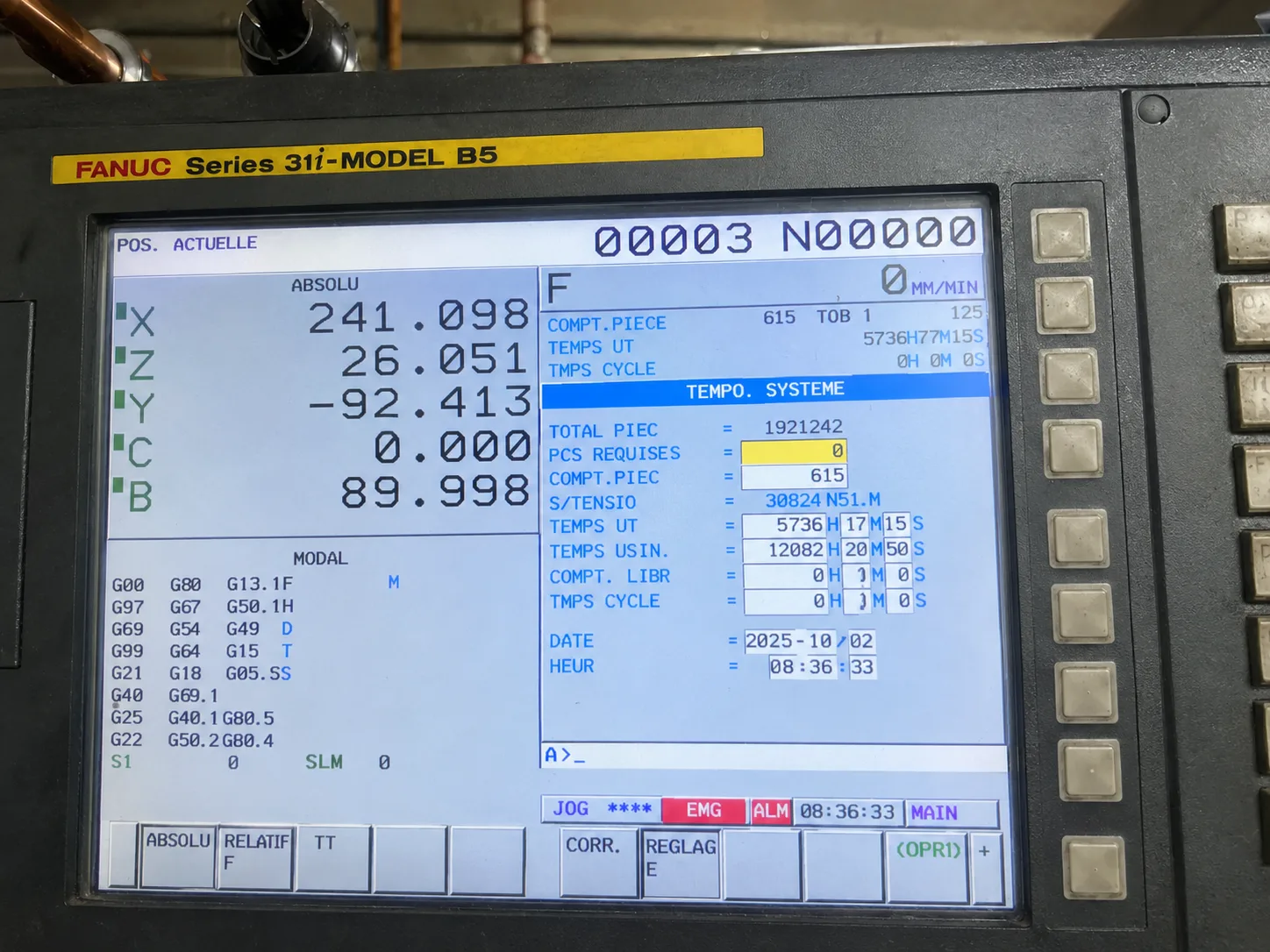

LCD/MDI:10.4" Color LCD Screen
Display Language:Multi-Language
Program Memory:64 Ko (Equivalent to 80 m of Paper Tape)
Number of Storable Programs:63
Auxiliary Functions:Main: 5 Digits, Rear: 3 Digits
Spindle Functions:S to 5 Digits
Tool Functions:T to 4 Digits
Country of Origin:Japan
Machine specifications
- Manufacturer
- TSUGAMI
- Model
- HS207-5AX
- Condition
- used
- Year
- 2018
- Brand
- TSUGAMI
- Dwell
- G04 0 to 99999.999
- Model
- HS207-5AX
- Cn Unit
- FANUC 31iA
- Control
- FANUC 31iA
- Lcd Mdi
- 10.4" Color LCD Screen
- Category
- CNC Machines
- Axis Names
- X1, Z1, Y1, X2, Z2, Y2, C1, C2, B1
- Feed Speed
- 1 to 6000 mm/min
- Subcategory
- CNC Turning & Milling Centres
- Machine Name
- CNC Multi-Axis Turn-Mill Center
- Power Supply
- 16 kVA
- Machine Weight
- 3.3 Ton
- Program Memory
- 64 Ko (Equivalent to 80 m of Paper Tape)
- Tool Functions
- T to 4 Digits
- Tool Dimensions
- □12 mm × 100 mm
- Display Language
- Multi-Language
- Rapid Feed Speed
- 32 m/min (X1, Y1: 24 m/min, Y2: 15 m/min), 32 m/min (X axis 24 m/min, Y axis 15 m/min)
- Country Of Origin
- Japan
- Spindle Functions
- S to 5 Digits
- Abs Inc Instruction
- X, Z, Y, C, B: Absolute; U, W, V, H: Relative
- Auxiliary Functions
- Main: 5 Digits, Rear: 3 Digits
- Grinding Wheel Motor
- 2.2/3.7 kW
- Grinding Wheel Speed
- 200 à 10000 tr/min
- Interpolation Method
- Linear/Circular
- Feed Speed Correction
- 0 to 150% in 10% increments
- Grinding Wheel Diameter
- 80 mm (Double Grinding Wheel (OP1)), 210 mm (Double Grinding Wheel for Roughing and Finishing (OP1)), 45 mm (Grinding Wheel for Grinding Flats (OP1))
- Maximum Grinding Length
- 250 mm
- Minimum Input Increment
- 0.001 mm (X1 and X2 axis diameter value)
- Tool Compensation Pairs
- 99
- Tool Compensation Value
- ±6 digits
- Machine Dimensions L W H
- 2110 × 1260 × 1885 mm
- Maximum Grinding Diameter
- M5
- Number Of Grinding Wheels
- 35
- Transverse Grinding Motor
- 0.75 kW
- Maximum Programmable Value
- ±8 digits
- Number Of Storable Programs
- 63
- Counter Grinding Wheel Motor
- 1.5/2.2 kW
- Counter Grinding Wheel Speed
- 200 à 10000 tr/min
- Maximum Grinding Wheel Speed
- 5000 tr/min
- Pivoting Grinding Wheel Motor
- 1.0 kW
- Grinding Bar Clamping Diameter
- Ø3 to Ø20 mm
- Smallest Instruction Increment
- X Axis X1/X2: 0.0005 mm, Others: 0.001 mm
- Maximum Transverse Grinding Diameter
- Ø6
- Maximum Grinding Wheel Pressure Diameter
- Ø110
- Minimum Grinding Wheel Pressure Diameter
- Ø110, Ø20
- Maximum B Axis Grinding Wheel Tapping Diameter
- M5
- Maximum Counter Grinding Wheel Thread Diameter
- M6
- Maximum Counter Grinding Wheel Pressure Diameter
- Ø8
