Fiber Laser Cutting Installation Bystronic BySmart Fiber
Ref. No.264
- Brand
- Bystronic
- Model
- BySmart Fiber
- Condition
- used
Fiber Laser Cutting Installation
Brand:Bystronic
Model:BySmart Fiber
Year:2023

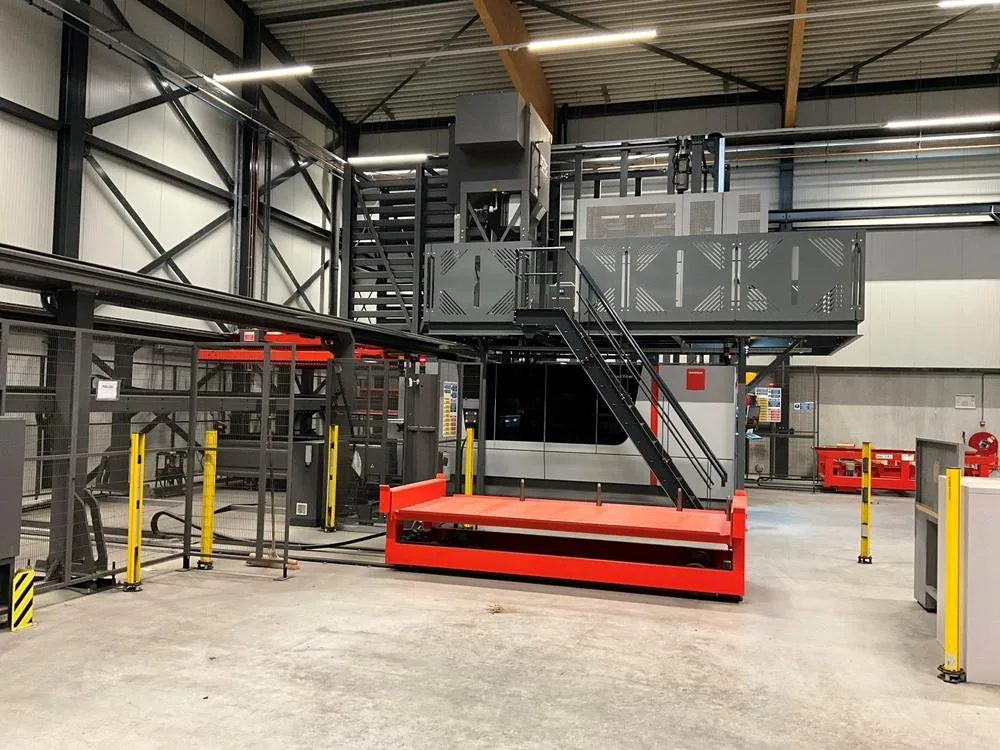

Complete Installation:BySmart 3015 Fiber 10.000; ByTrans Modular; BySort 3015; Tower-Linie 3015 1T

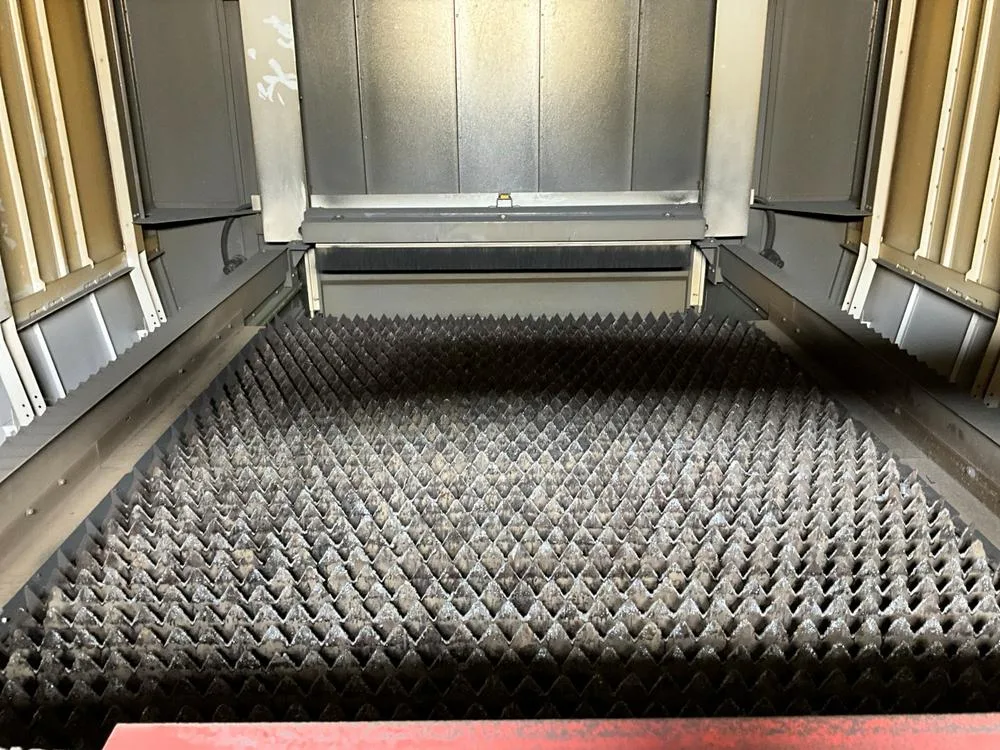

Nominal Sheet Dimensions (X × Y):3000 × 1500 mm
Maximum Cutting Range (X × Y × Z):3048 × 1524 × 100 mm

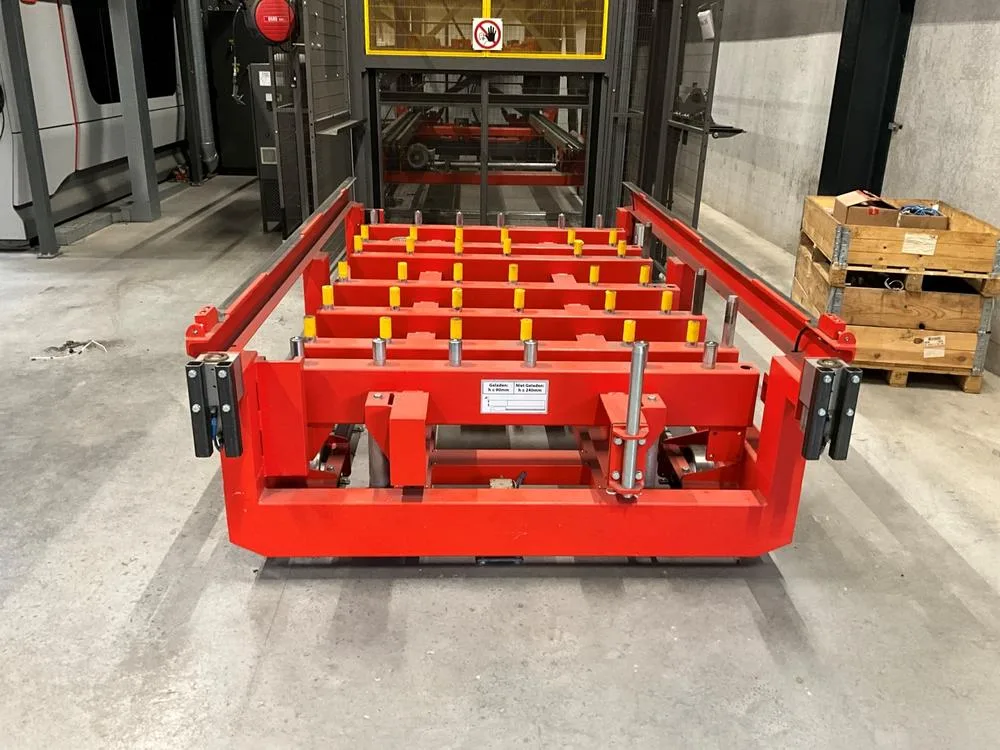

Maximum Weight on Shuttle Table:1,100 kg (Fully Loaded Shuttle Table)
Table Changeover Time:Approximately 27 seconds

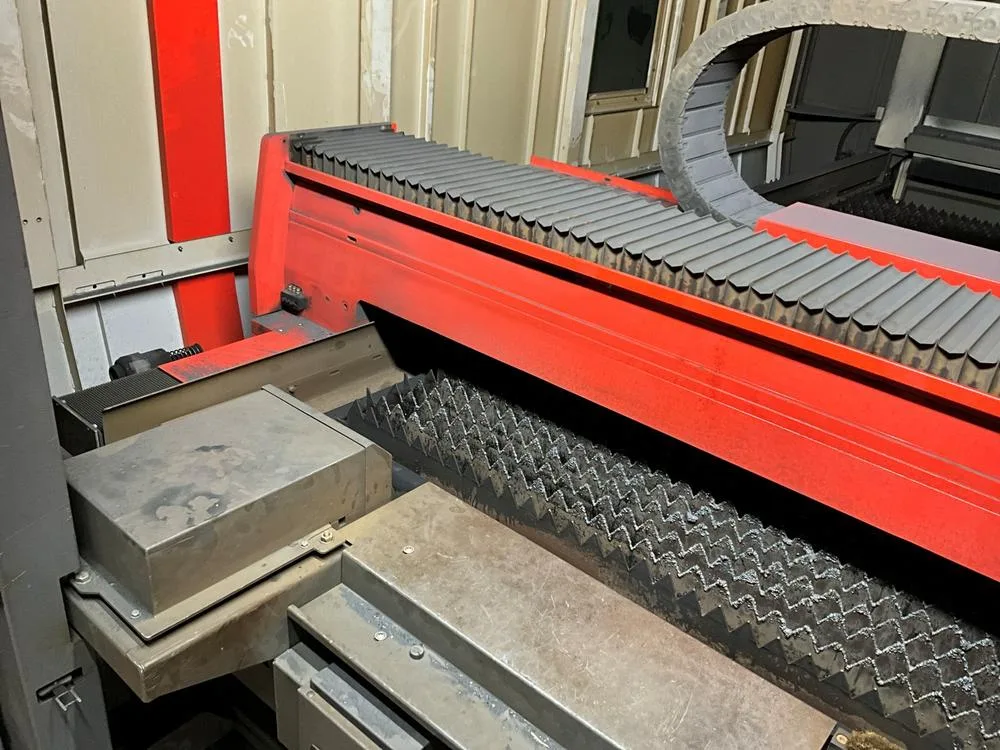

Drive:High-Rigidity Gantry System
Maximum Axis Speed (Parallel X, Y):100 m/min
Maximum Simultaneous Positioning Speed:140 m/min
Maximum Axis Acceleration:Up to 12 m/s²
Positioning Accuracy (Pa):± 0.1 mm
Repeatability (Ps):± 0.05 mm
Edge Detection Accuracy:± 0.5 mm Using the Automatic Optical Measurement Sensors on the Cutting Head

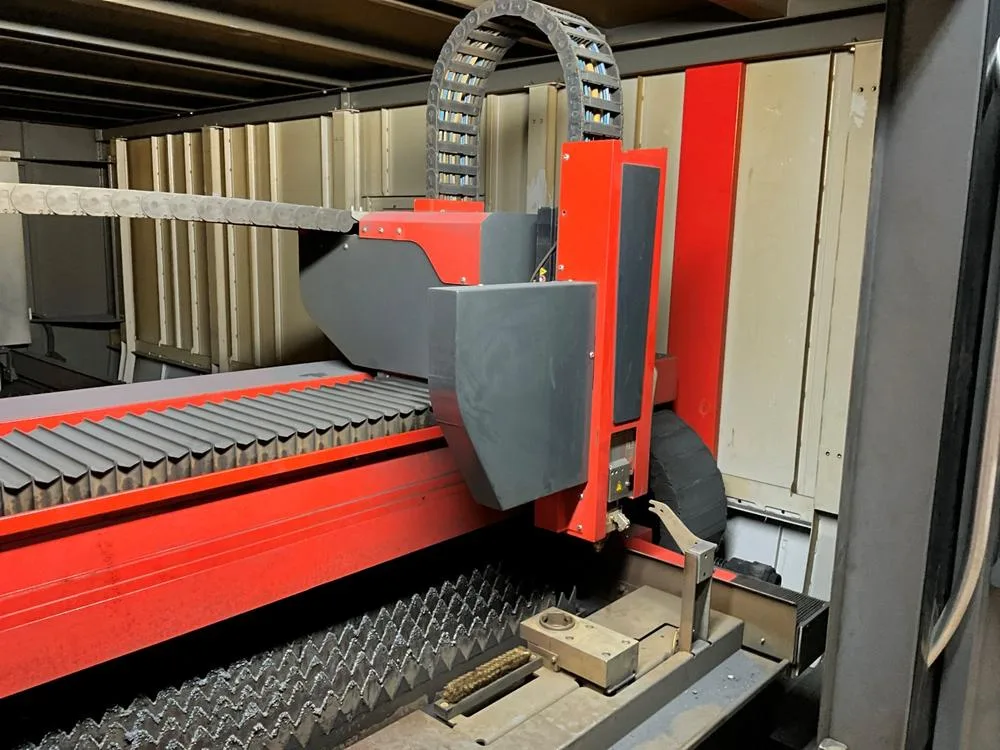

Cutting Head:Original Bystronic Engineered Fiber Cutting Head with Automatic Focal Point Adjustment (Autofocus)
Nozzle Handling:Automatic Nozzle Centering and Automatic Nozzle Changer (Depending on the Selected Factory Options)
BeamShaper (Optional):Adjusts the Laser Beam Profiles for Better Cutting Quality and Higher Speeds in Thick Carbon Steel
Laser Power:10 kW
Carbon Steel (Mild Steel):Up to 25 mm (30 mm with BeamShaper)
Stainless Steel:Up to 30 mm
Aluminum:Up to 30 mm
Brass / Copper:Up to 15 mm / 12 mm

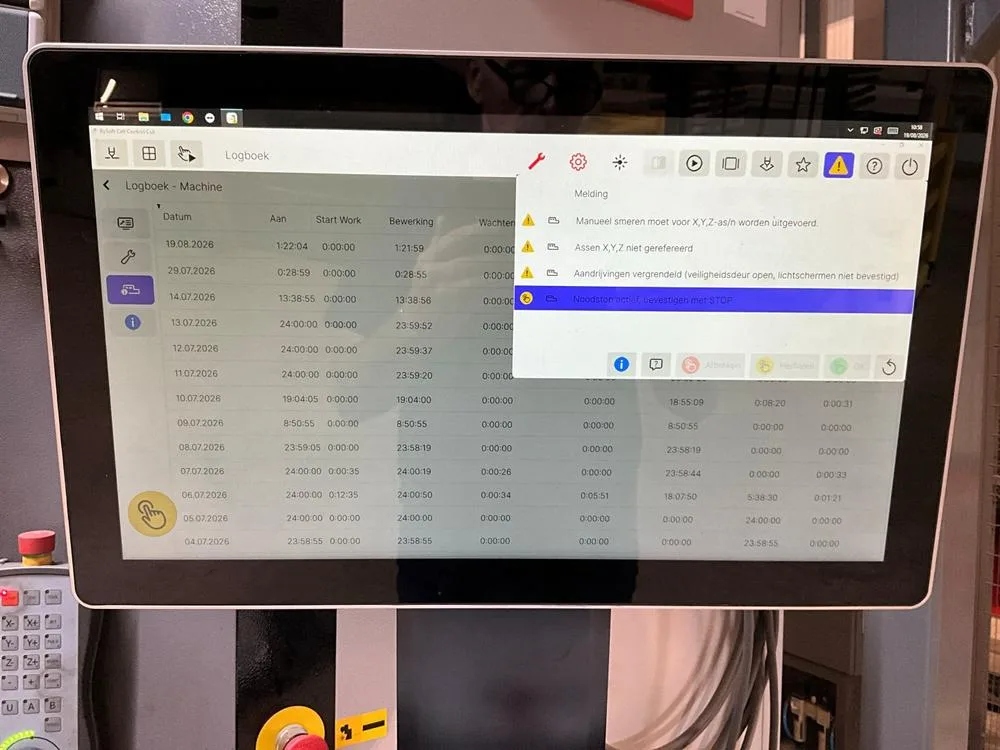

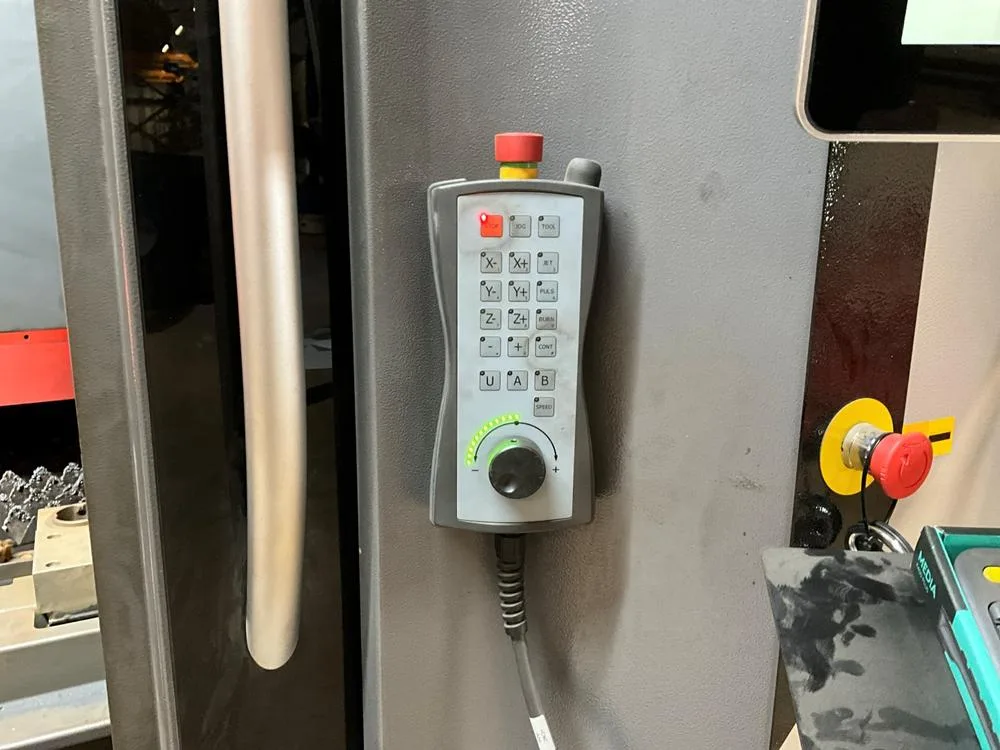

CNC Control:ByVision Cutting with a 21.5-inch HD Touchscreen Mounted Directly on the Machine
Software Integration:Fully Compatible with BySoft CAM (Automatic Nesting, Cutting Path Optimization, and Integration with the ByTrans Extended Automation Systems)
Cutting Hours:1399,59
Operating Hours:19720,58
Pneumatic Pre-Pressure:Nominal 6 bar
Pneumatic Pressure Cut-Off Point:5 bar
Power:400 V/50 Hz
Maximum Positioning Speed X/Y Axes Parallel: 100 m/min
Maximum Positioning Speed X/Y Axes Simultaneous: 140 m/min
Maximum Axis Acceleration:8 m/s²
Maximum Laser Power:10 kW
Power Range:1,000 to 10,000 kW
Emitted Wavelength:1,060–1,080 nm
Cooling Capacity:25 kW
Cooling Air Volume:7,200 m³/h
Cooling Unit Waste Heat Output:38.7 kW
Cooling Unit Noise Emission:<70 dB(A)
Dust Extraction System Motor Power:7.5 kW
Dust Extraction System Airflow:40,000 m³/h
Dust Extraction System Filter Assembly:4 Filter Cartridges
Dust Extraction System Noise Emission:Approx. 75 dB(A)
Machine specifications
- Manufacturer
- Bystronic
- Model
- BySmart Fiber
- Condition
- used
- Year
- 2023
- Brand
- Bystronic
- Drive
- High-Rigidity Gantry System
- Model
- BySmart Fiber
- Power
- 400 V/50 Hz
- Aluminum
- Up to 30 mm
- Category
- CNC Machines
- Cnc Control
- ByVision Cutting with a 21.5-inch HD Touchscreen Mounted Directly on the Machine
- Laser Power
- 10 kW
- Power Range
- 1,000 to 10,000 kW
- Subcategory
- Fiber Laser Cutting Machines
- Brass Copper
- Up to 15 mm / 12 mm
- Cutting Head
- Original Bystronic Engineered Fiber Cutting Head with Automatic Focal Point Adjustment (Autofocus)
- Machine Name
- Fiber Laser Cutting Installation
- Cutting Hours
- 1399,59
- Nozzle Handling
- Automatic Nozzle Centering and Automatic Nozzle Changer (Depending on the Selected Factory Options)
- Operating Hours
- 19720,58
- Stainless Steel
- Up to 30 mm
- Cooling Capacity
- 25 kW
- Repeatability Ps
- ± 0.05 mm
- Cooling Air Volume
- 7,200 m³/h
- Emitted Wavelength
- 1,060–1,080 nm
- Beamshaper Optional
- Adjusts the Laser Beam Profiles for Better Cutting Quality and Higher Speeds in Thick Carbon Steel
- Maximum Laser Power
- 10 kW
- Software Integration
- Fully Compatible with BySoft CAM (Automatic Nesting, Cutting Path Optimization, and Integration with the ByTrans Extended Automation Systems)
- Complete Installation
- BySmart 3015 Fiber 10.000; ByTrans Modular; BySort 3015; Tower-Linie 3015 1T
- Table Changeover Time
- Approximately 27 seconds
- Pneumatic Pre Pressure
- Nominal 6 bar
- Carbon Steel Mild Steel
- Up to 25 mm (30 mm with BeamShaper)
- Edge Detection Accuracy
- ± 0.5 mm Using the Automatic Optical Measurement Sensors on the Cutting Head
- Positioning Accuracy Pa
- ± 0.1 mm
- Maximum Axis Acceleration
- Up to 12 m/s², 8 m/s²
- Cooling Unit Noise Emission
- <70 dB(A)
- Maximum Cutting Range X Y Z
- 3048 × 1524 × 100 mm
- Nominal Sheet Dimensions X Y
- 3000 × 1500 mm
- Cooling Unit Waste Heat Output
- 38.7 kW
- Dust Extraction System Airflow
- 40,000 m³/h
- Maximum Axis Speed Parallel X Y
- 100 m/min
- Maximum Weight On Shuttle Table
- 1,100 kg (Fully Loaded Shuttle Table)
- Pneumatic Pressure Cut Off Point
- 5 bar
- Dust Extraction System Motor Power
- 7.5 kW
- Dust Extraction System Noise Emission
- Approx. 75 dB(A)
- Dust Extraction System Filter Assembly
- 4 Filter Cartridges
- Maximum Simultaneous Positioning Speed
- 140 m/min
- Maximum Positioning Speed X Y Axes Parallel
- 100 m/min
- Maximum Positioning Speed X Y Axes Simultaneous
- 140 m/min
