CNC Lathe Spinner TC400
Ref. No.265
- Brand
- Spinner
- Model
- TC400
- Condition
- used
CNC Lathe
Brand:Spinner
Model:TC400
Year:2014
Control:Fanuc 32iTB
Maximum Bar Capacity:Ø52 mm
X-Axis Travel:200 mm
Z-Axis Travel:515 mm
Maximum Spindle Speed:5,000 rpm
Spindle Capacity:52 mm
Spindle Power:18 kW
Spindle Torque:113 Nm (S6=40%)
Spindle:Integrated Motor Spindle with Water Cooling
Spindle Nose:A6
C-Axis:Including Software Option 'Transmit' for Face Machining and 'Cylindrical Interpolation' for Peripheral Machining

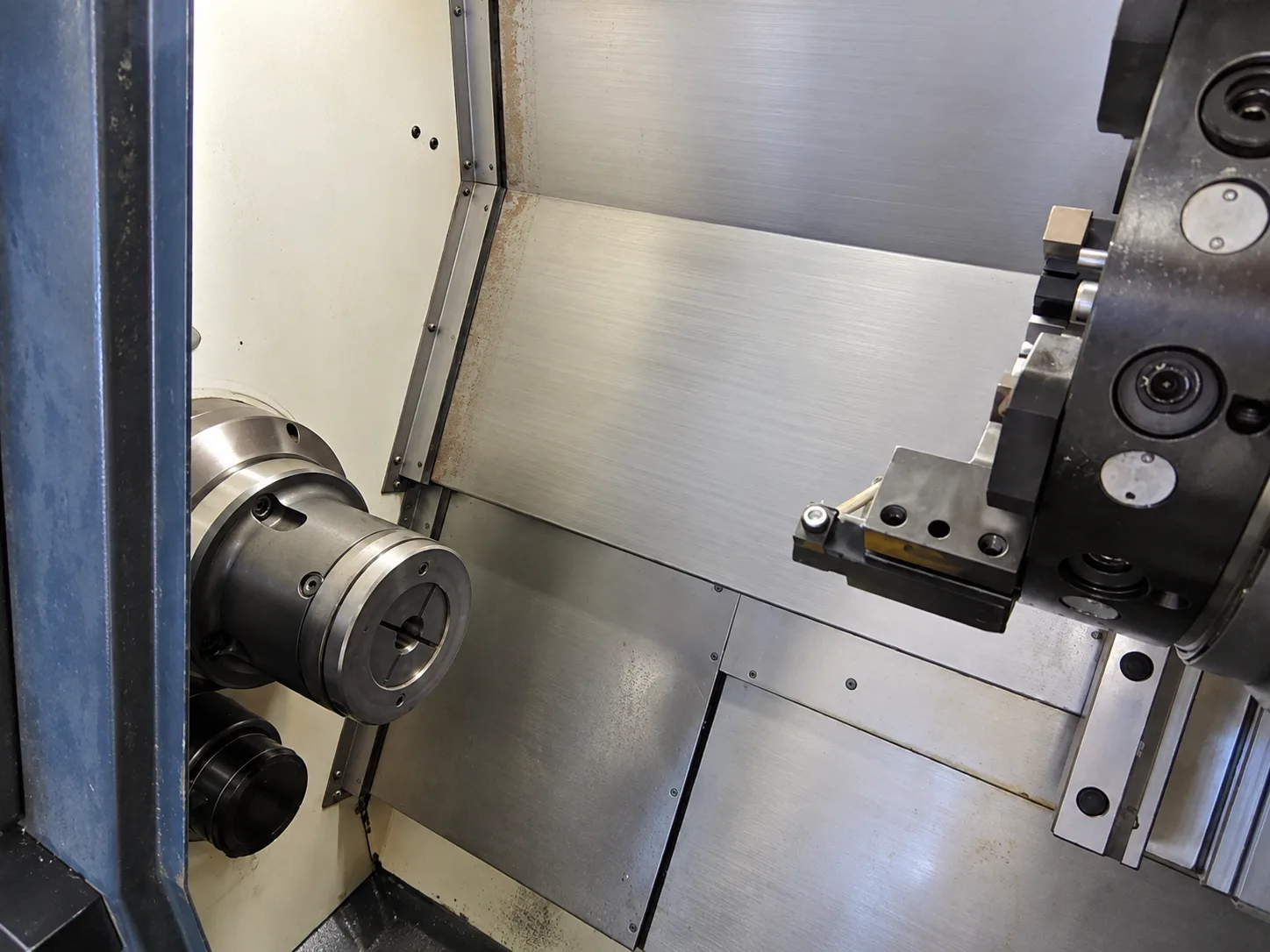

Chuck Cylinder:Hydraulic Hollow Chuck Cylinder

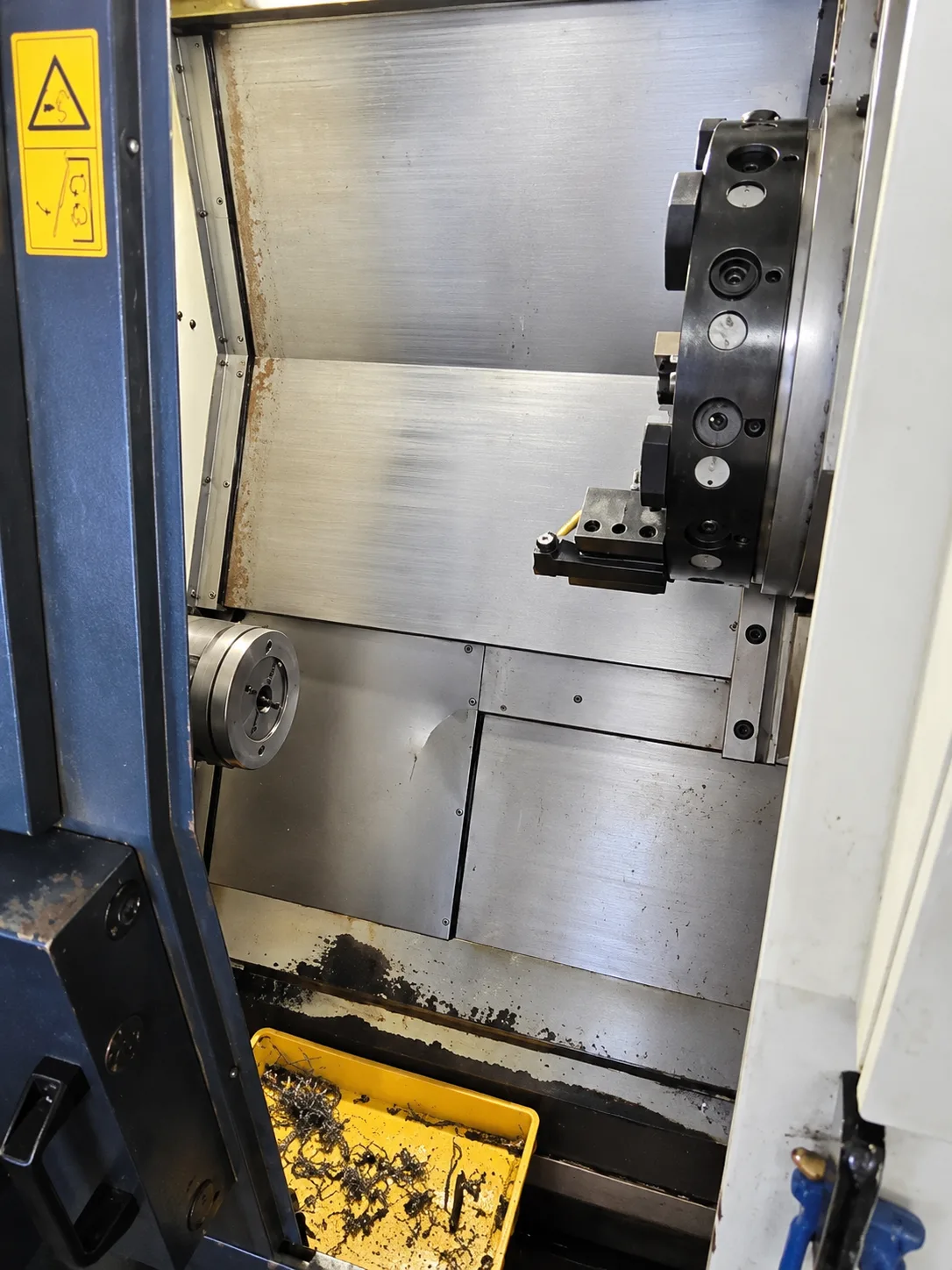

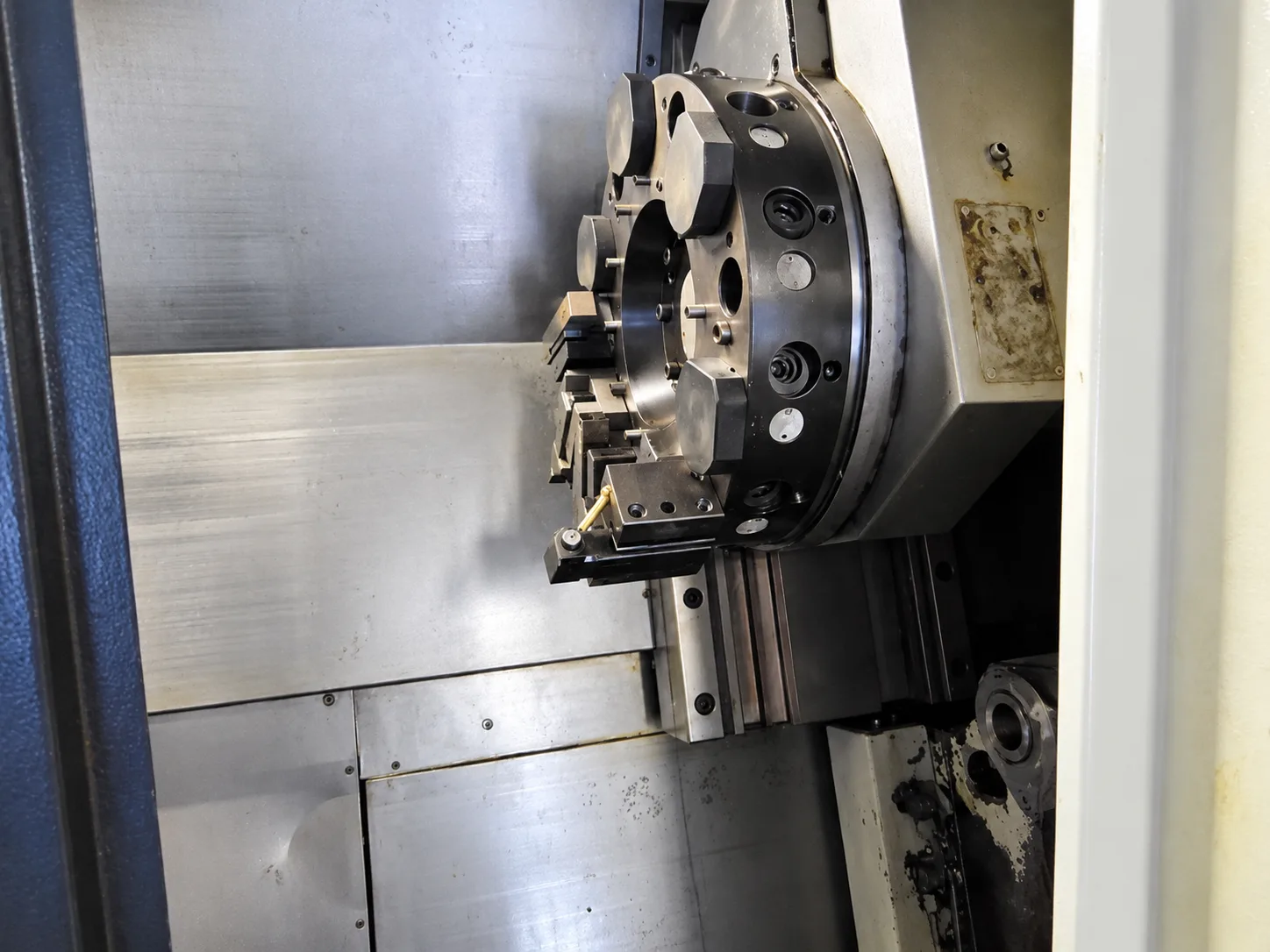

Turret:12-Position Indexing Turret for Tool Holders in Accordance with DIN 69880/30 mm
Driven Tool Stations:12
Tailstock:MK4
Coolant Tank:Enlarged L-Shaped, Approx. 150 Liters
Centrifugal Pump:50 l/min, 3.3 bar
Features:

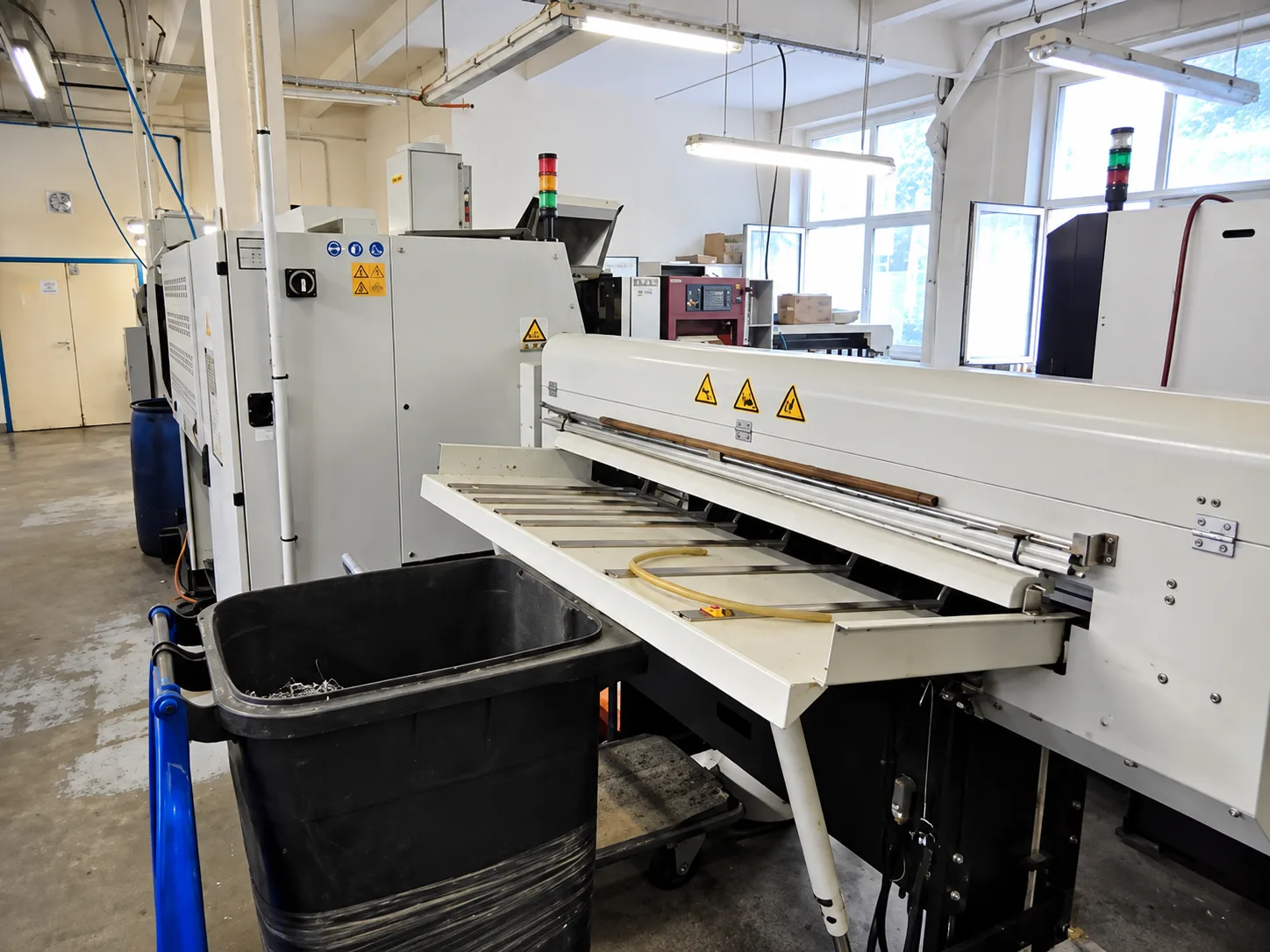

- Spinner Servo-Load 80-1500V2 Short Bar Loader with Support Stand

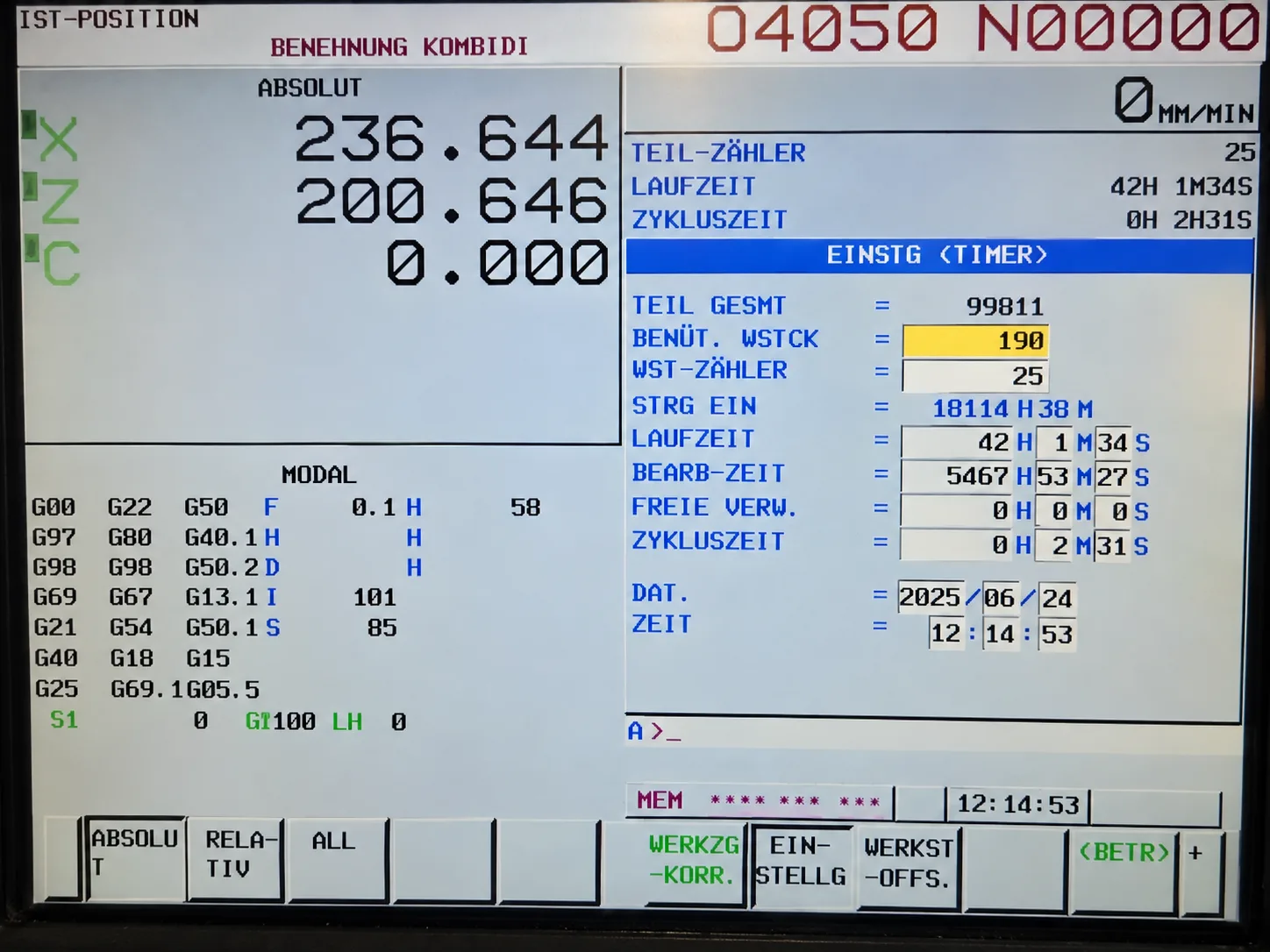

- Fanuc 32iTB with Color LCD Display/Control Panel 1
- GE Fanuc Digital AC Drive Motors for X/Z Axes and Spindle
- Turret for Milling and Drilling Operations
- Chip Conveyor
- Parts Catcher
- Tool Setter Arm
- High-Pressure Pump
- Electrostatic Air Cleaner
Condition:Excellent (Used)
Machine specifications
- Manufacturer
- Spinner
- Model
- TC400
- Condition
- used
- Year
- 2014
- Brand
- Spinner
- Model
- TC400
- C Axis
- Including Software Option 'Transmit' for Face Machining and 'Cylindrical Interpolation' for Peripheral Machining
- Turret
- 12-Position Indexing Turret for Tool Holders in Accordance with DIN 69880/30 mm
- Control
- Fanuc 32iTB
- Spindle
- Integrated Motor Spindle with Water Cooling
- Category
- CNC Machines
- Features
- Spinner Servo-Load 80-1500V2 Short Bar Loader with Support Stand, Fanuc 32iTB with Color LCD Display/Control Panel 1, GE Fanuc Digital AC Drive Motors for X/Z Axes and Spindle, Turret for Milling and Drilling Operations, Chip Conveyor, Parts Catcher, Tool Setter Arm, High-Pressure Pump, Electrostatic Air Cleaner
- Condition
- Excellent (Used)
- Tailstock
- MK4
- Subcategory
- CNC Turning & Milling Centres
- Coolant Tank
- Enlarged L-Shaped, Approx. 150 Liters
- Machine Name
- CNC Lathe
- Spindle Nose
- A6
- Spindle Power
- 18 kW
- X Axis Travel
- 200 mm
- Z Axis Travel
- 515 mm
- Chuck Cylinder
- Hydraulic Hollow Chuck Cylinder
- Spindle Torque
- 113 Nm (S6=40%)
- Centrifugal Pump
- 50 l/min, 3.3 bar
- Spindle Capacity
- 52 mm
- Driven Tool Stations
- 12
- Maximum Bar Capacity
- Ø52 mm
- Maximum Spindle Speed
- 5,000 rpm
