Gantry Milling Machine
5-Axis Gantry Milling Machine
Ref. No.266
- Brand
- JOBS
- Model
- LINX COMPACT 30
- Condition
- used

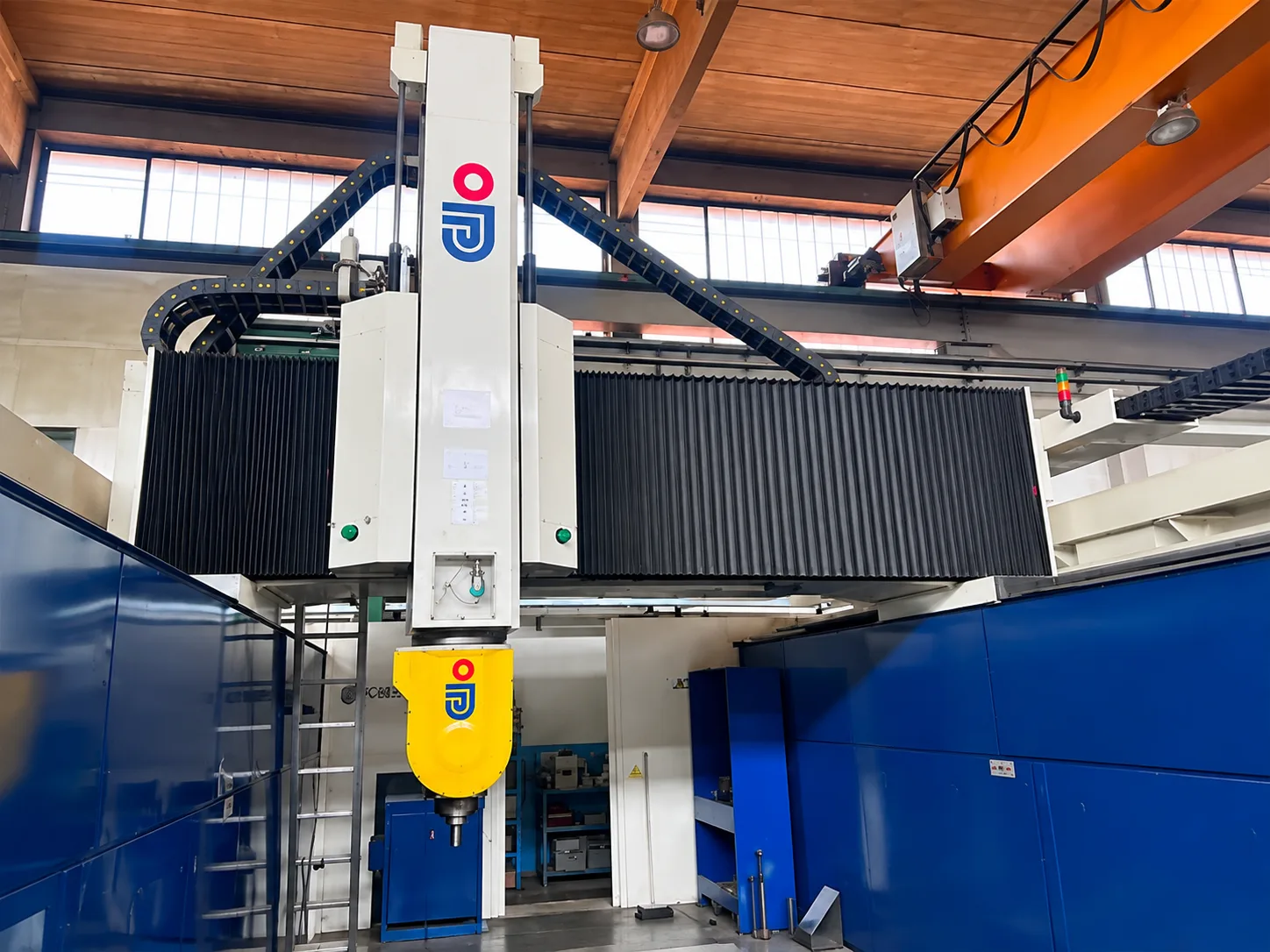

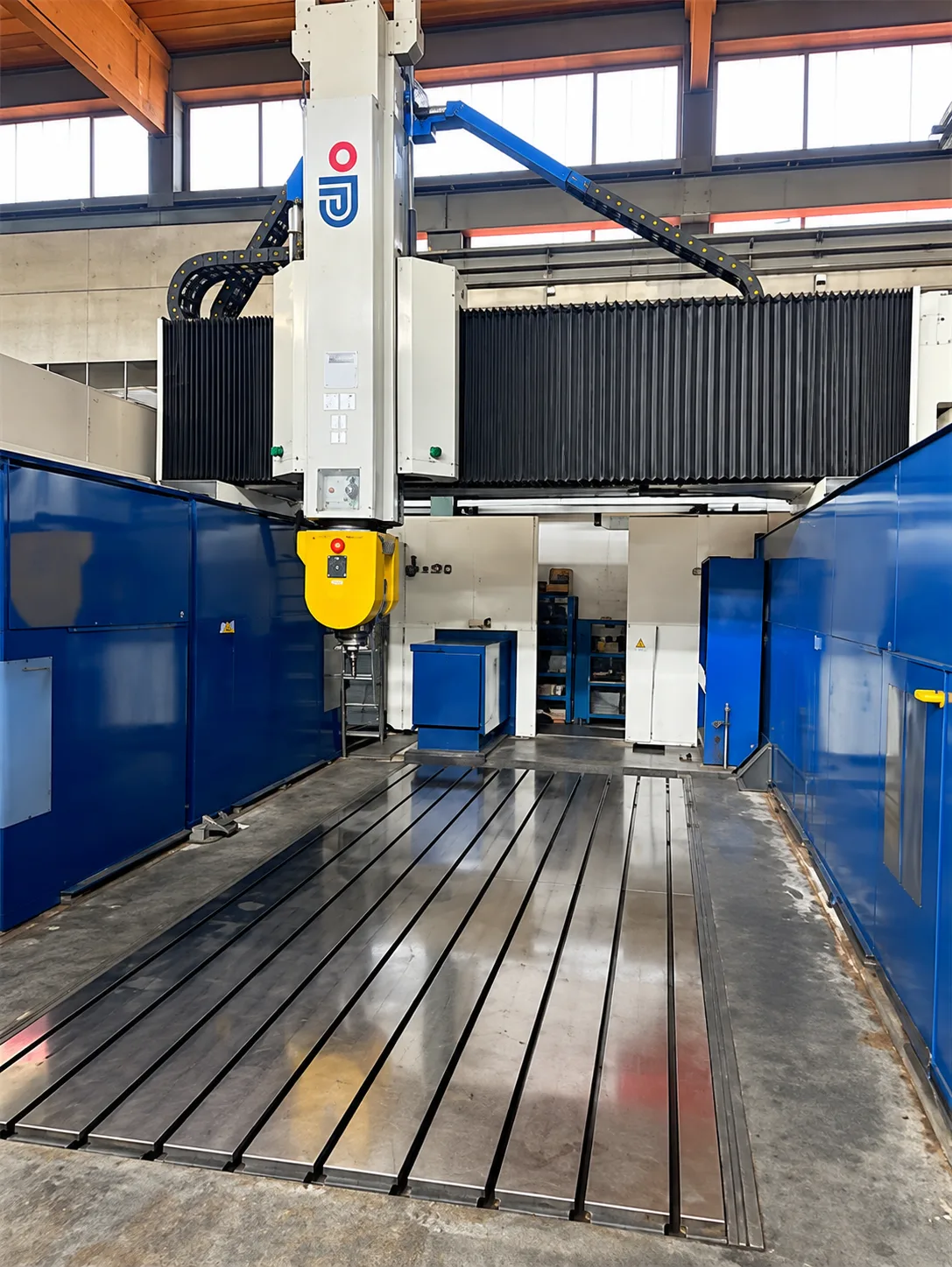

5-Axis Gantry Milling Machine
Brand:JOBS
Model:LINX COMPACT 30
Year:2009

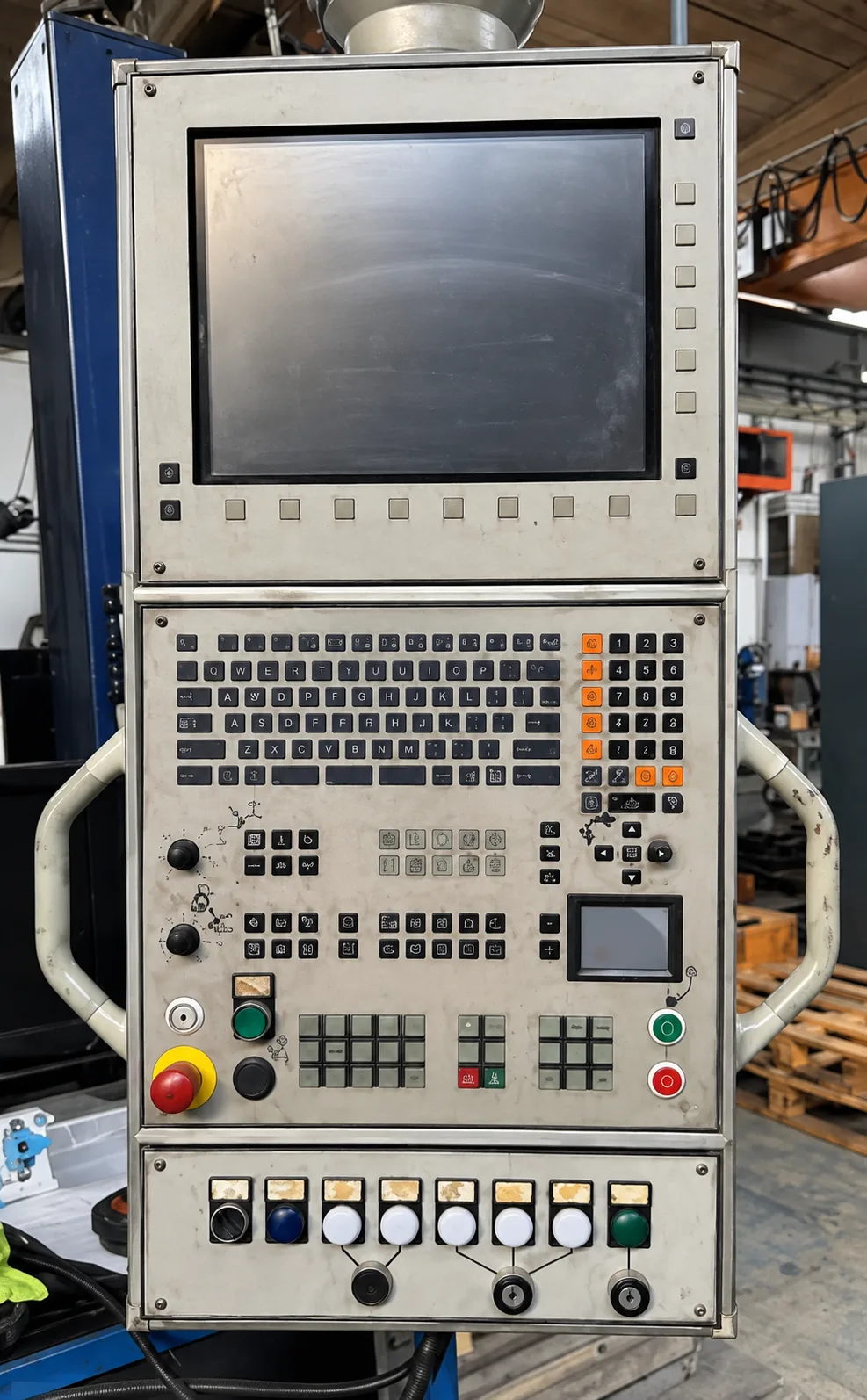

Control:Heidenhain iTNC 530
Drive:Linear Drive
X-Axis Travel:6.200 mm
Y-Axis Travel:2.950 mm
Z-Axis Travel:1.500 mm
Distance Between Columns:3915 mm
Axes Speed X, Y, Z:60.000 mm/min
Head:5-Axis Fork-Type Head (Twist) with Electrospindle
Spindle Speed:15.000 rpm
A-Axis:-95°/-120°
C-Axis:+/-200°
Spindle Taper:HSK A100
Power:35 kW

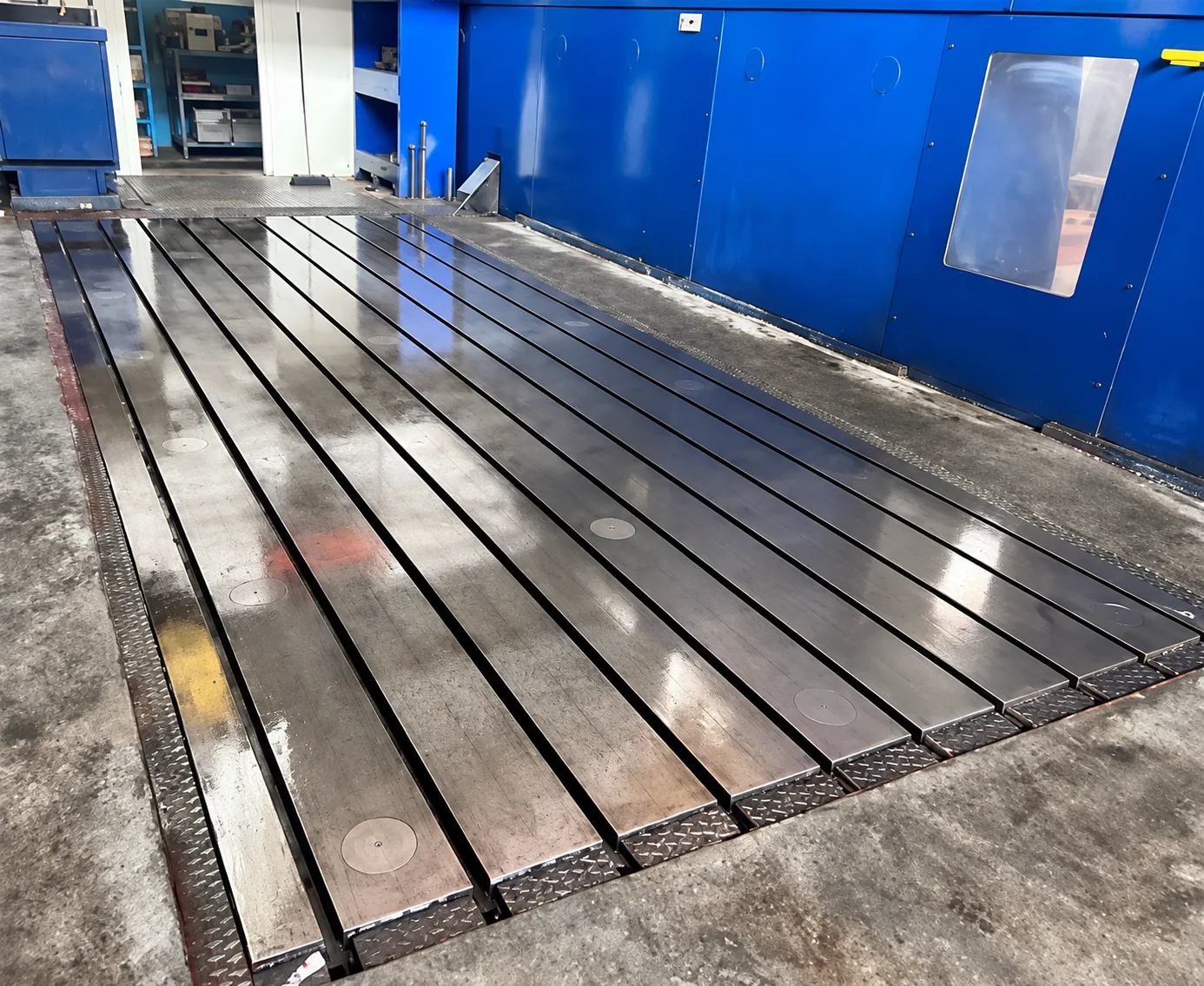

Table Size:6000 × 2500 mm
Automatic Tool Changer:32 Positions
Tool Positions:12 HSK A100 + 20 HSK A63
Features:
• Swarf Conveyor
• BLUM Tool Probe
• Optical Scales
Machine specifications
- Manufacturer
- JOBS
- Model
- LINX COMPACT 30
- Condition
- used
- Head
- 5-Axis Fork-Type Head (Twist) with Electrospindle
- Year
- 2009
- Brand
- JOBS
- Drive
- Linear Drive
- Model
- LINX COMPACT 30
- Power
- 35 kW
- A Axis
- -95°/-120°
- C Axis
- +/-200°
- Control
- Heidenhain iTNC 530
- Category
- CNC Machines
- Features
- Swarf Conveyor, BLUM Tool Probe, Optical Scales
- Table Size
- 6000 × 2500 mm
- Subcategory
- Portal Milling Machines
- Machine Name
- 5-Axis Gantry Milling Machine
- Spindle Speed
- 15.000 rpm
- Spindle Taper
- HSK A100
- X Axis Travel
- 6.200 mm
- Y Axis Travel
- 2.950 mm
- Z Axis Travel
- 1.500 mm
- Tool Positions
- 12 HSK A100 + 20 HSK A63
- Axes Speed X Y Z
- 60.000 mm/min
- Automatic Tool Changer
- 32 Positions
- Distance Between Columns
- 3915 mm
