CNC Machines
Thread Grinder
Ref. No.245
- Brand
- MATRIX
- Model
- MATRIX 47
- Condition
- used

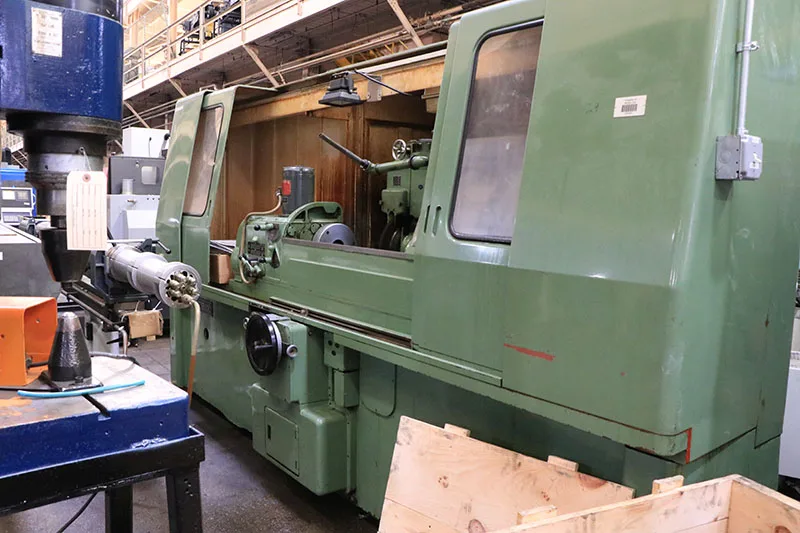

Thread Grinder
MATRIX 47
YOM:1980
Swing Over Table Ways:406.4 mm
Distance Between Centers:1066.8 mm
Maximum Ground Length:1016 mm
Maximum Ground Diameter:317.5 mm

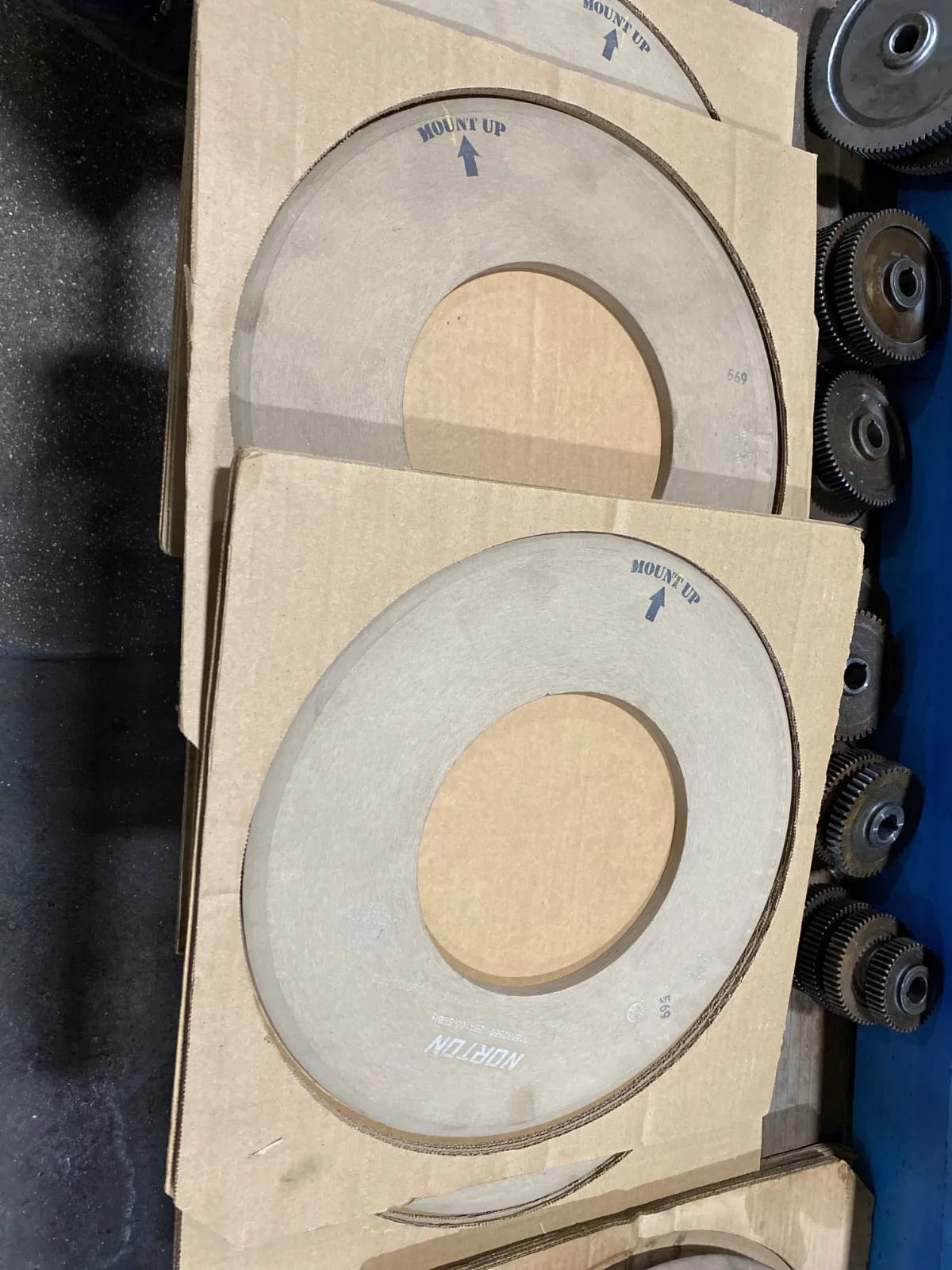

Grinding Wheel Diameter:406.4 mm and 508 mm
Wheelhead Drive Power:10 and 20 HP
Helix of Wheel, LH & RH:45"
Workhead Thru Bore:3.97
Features:
- Dress Unit – MATRIX Automatic Single Point Unit
- Ref. VTG for Dressing Forms Between 20 Degrees and 60 Degrees Inclusive
- Maximum Form Depth:0.5"
- MATRIX Wheel Balancing Fixture

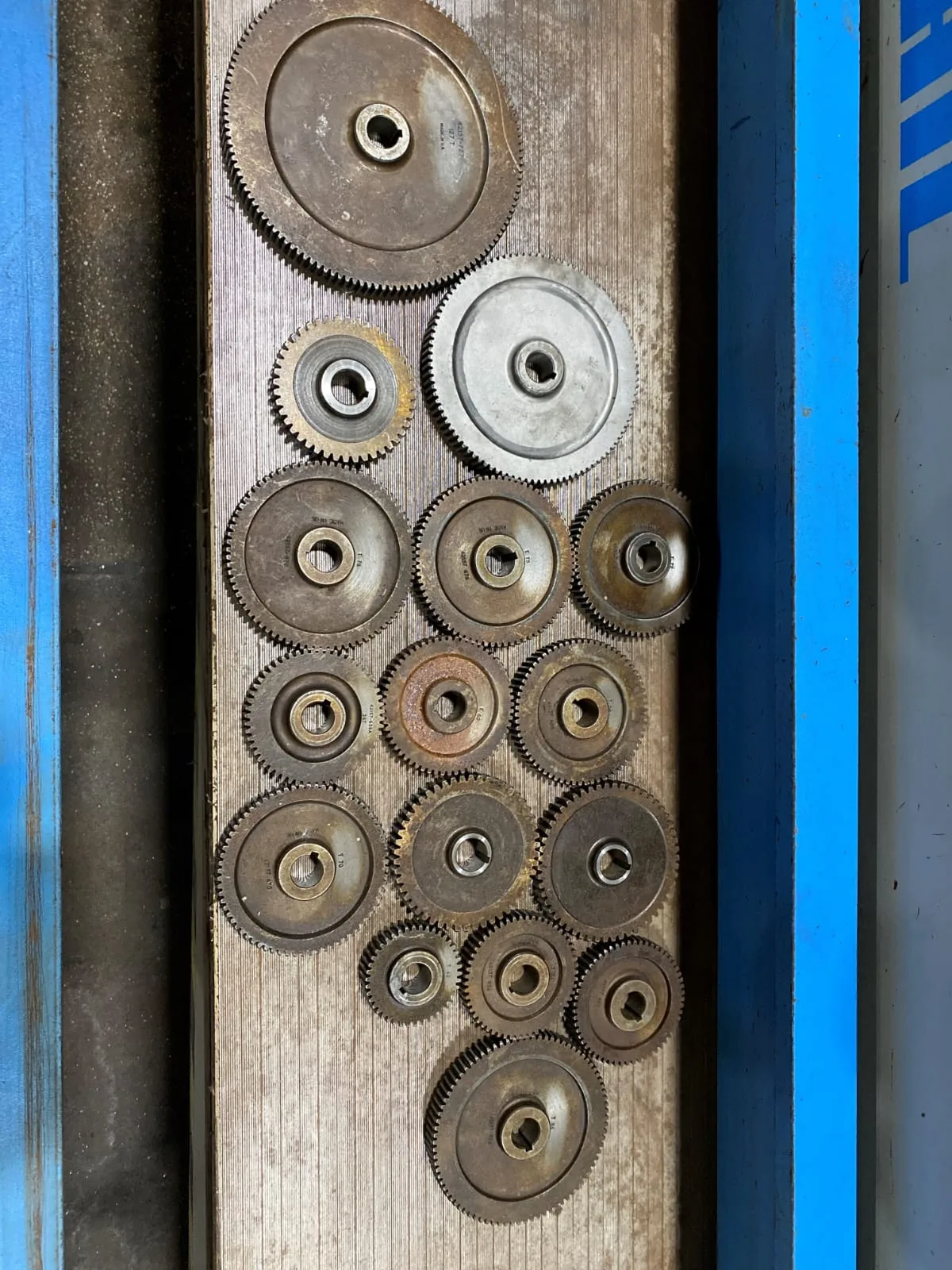

- Set of Pitch Change Gears
- Hood & Enclosure
Machine specifications
- Manufacturer
- MATRIX
- Model
- MATRIX 47
- Condition
- used
- Yom
- 1980
- Brand
- MATRIX
- Model
- 47
- Category
- Grinding Machines
- Features
- Dress Unit – MATRIX Automatic Single Point Unit, Ref. VTG for Dressing Forms Between 20 Degrees and 60 Degrees Inclusive, Maximum Form Depth: 0.5", MATRIX Wheel Balancing Fixture, Set of Pitch Change Gears, Hood & Enclosure
- Subcategory
- Thread Grinding Machines
- Machine Name
- Thread Grinder
- Workhead Thru Bore
- 3.97
- Helix Of Wheel Lh Rh
- 45"
- Maximum Ground Length
- 1016 mm
- Swing Over Table Ways
- 406.4 mm
- Wheelhead Drive Power
- 10 and 20 HP
- Grinding Wheel Diameter
- 406.4 mm and 508 mm
- Maximum Ground Diameter
- 317.5 mm
- Distance Between Centers
- 1066.8 mm
