Turning and Milling Centres
CNC Lathe SPINNER TC77 MCY
Ref. No.270
- Brand
- SPINNER
- Model
- TC77 MCY
- Condition
- used
Machine Name:CNC Lathe
Brand:SPINNER
Model:TC77 MCY
Year:2008

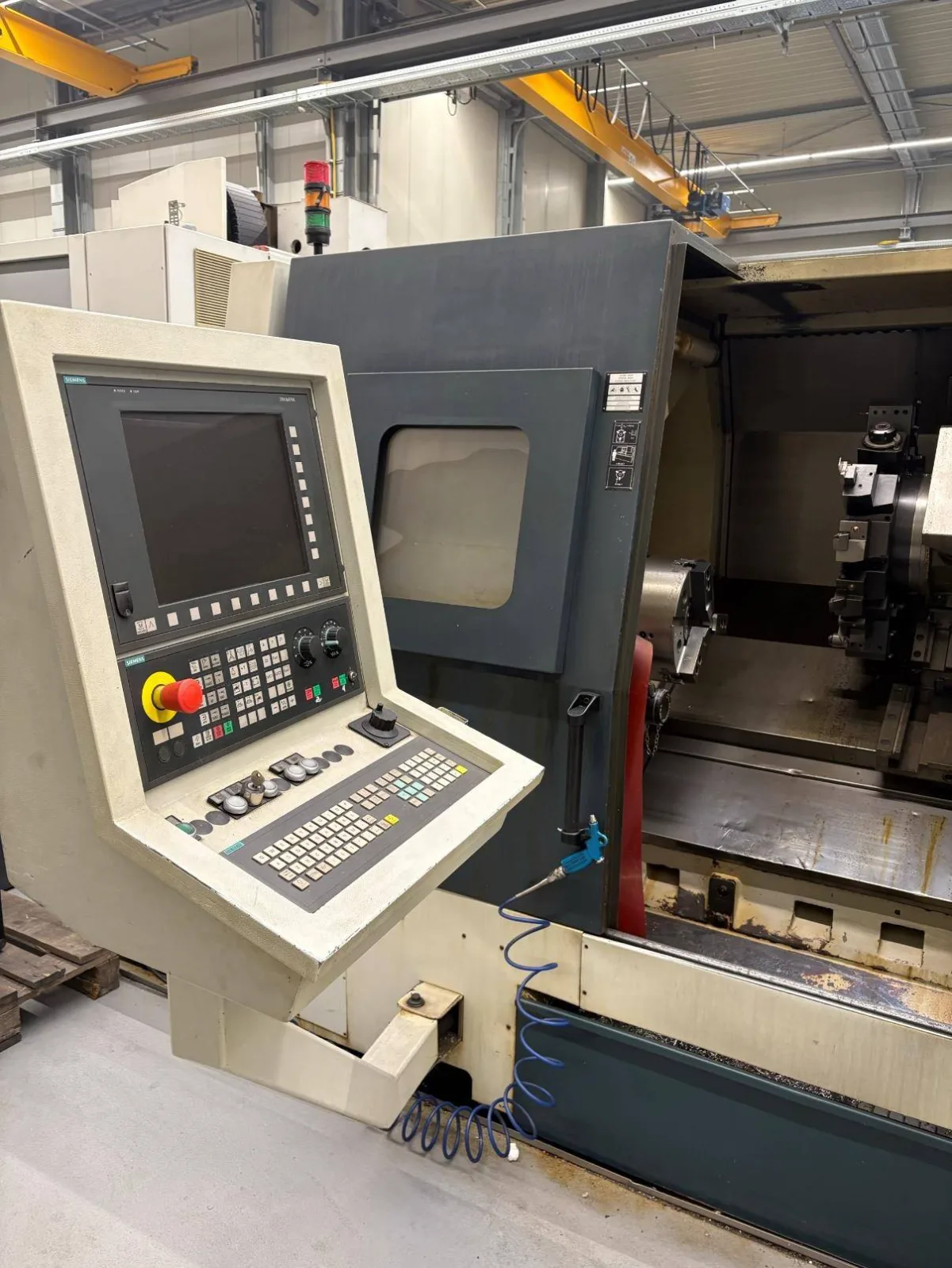

Control:Siemens 840 D
Chuck Diameter:210 mm
Maximum Swing Diameter:690 mm
Turning Diameter:500 mm
Distance Between Centres:800 mm
X-Axis Travel:350 mm
Y-Axis Travel:230 mm (-110 mm +120 mm)
Z-Axis Travel:1160 mm
Feed Speed X / Z:15/24 mm/min
Maximum Torque:113 Nm
Spindle 1 Spindle Head Diameter (Flange): A8 mm
Spindle 2 Spindle Head Diameter (Flange): A6 mm
Turret Places:12 Pcs
Tailstock Diameter:110 mm
Quills Morse Taper:MK4
Machine Dimensions (L × W × H):3250 × 1980 × 2090 mm
Machine Weight:7.5 Ton
Machine specifications
- Manufacturer
- SPINNER
- Model
- TC77 MCY
- Condition
- used
- Year
- 2008
- Brand
- SPINNER
- Model
- TC77 MCY
- Control
- Siemens 840 D
- Category
- CNC Machines
- Subcategory
- CNC Turning & Milling Centres
- Machine Name
- CNC Lathe
- Turret Places
- 12 Pcs
- X Axis Travel
- 350 mm
- Y Axis Travel
- 230 mm (-110 mm +120 mm)
- Z Axis Travel
- 1160 mm
- Chuck Diameter
- 210 mm
- Feed Speed X Z
- 15/24 mm/min
- Machine Weight
- 7.5 Ton
- Maximum Torque
- 113 Nm
- Turning Diameter
- 500 mm
- Quills Morse Taper
- MK4
- Tailstock Diameter
- 110 mm
- Maximum Swing Diameter
- 690 mm
- Distance Between Centres
- 800 mm
- Machine Dimensions L W H
- 3250 × 1980 × 2090 mm
- Spindle 1 Spindle Head Diameter Flange
- A8 mm
- Spindle 2 Spindle Head Diameter Flange
- A6 mm
