Surface Grinders

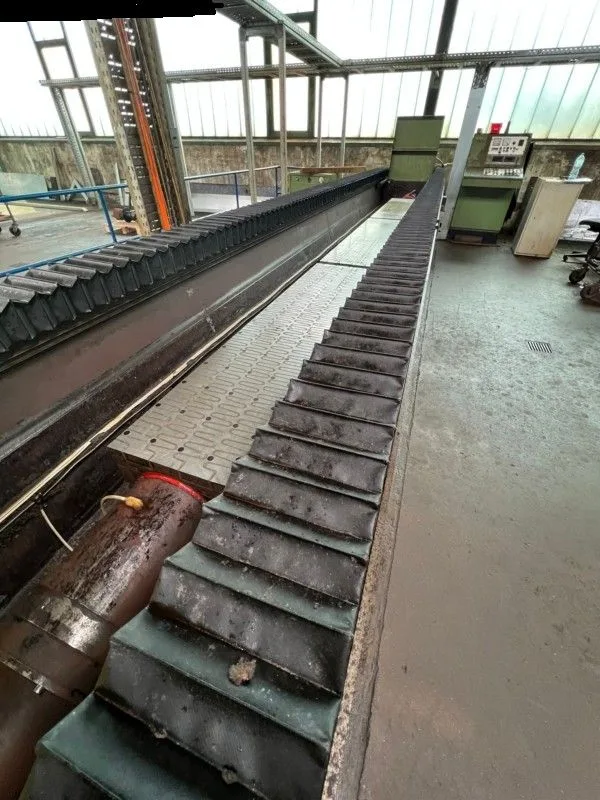

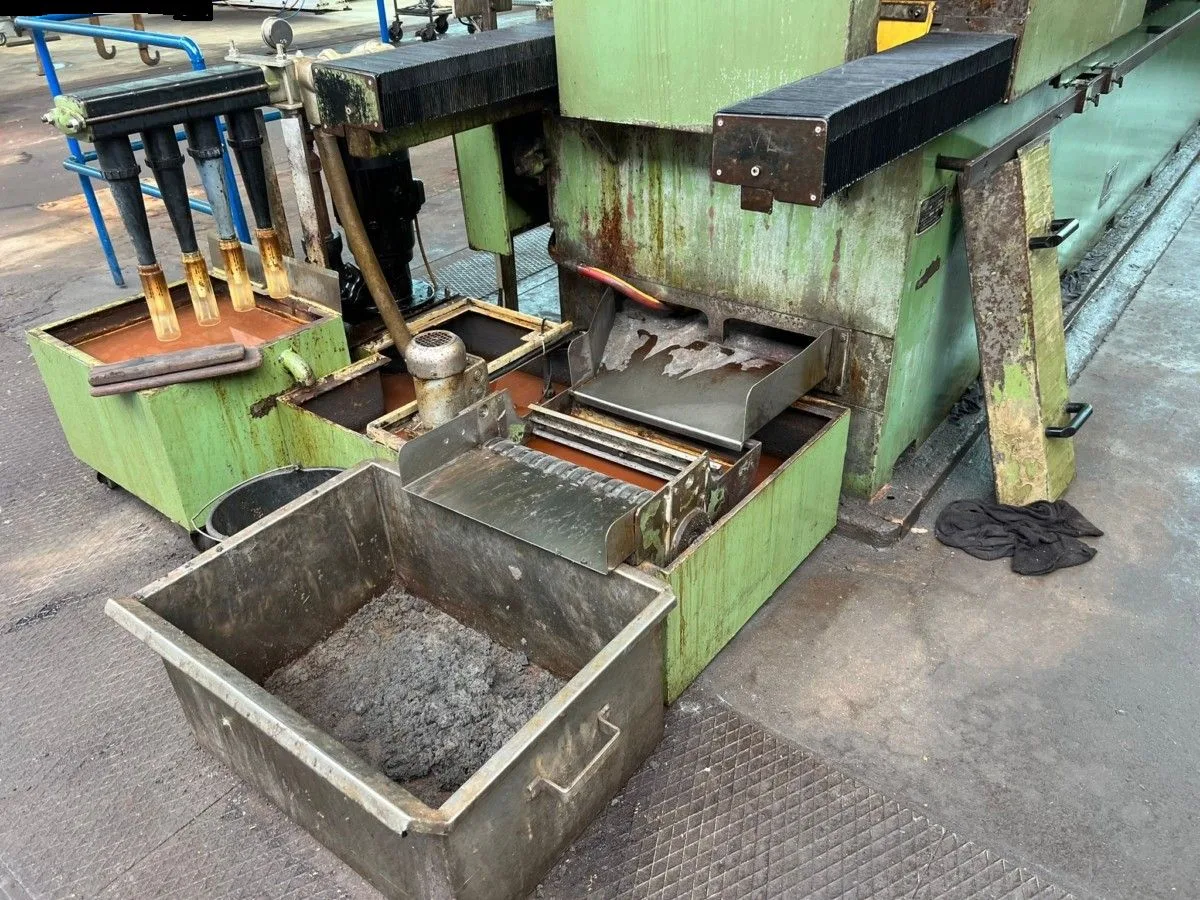

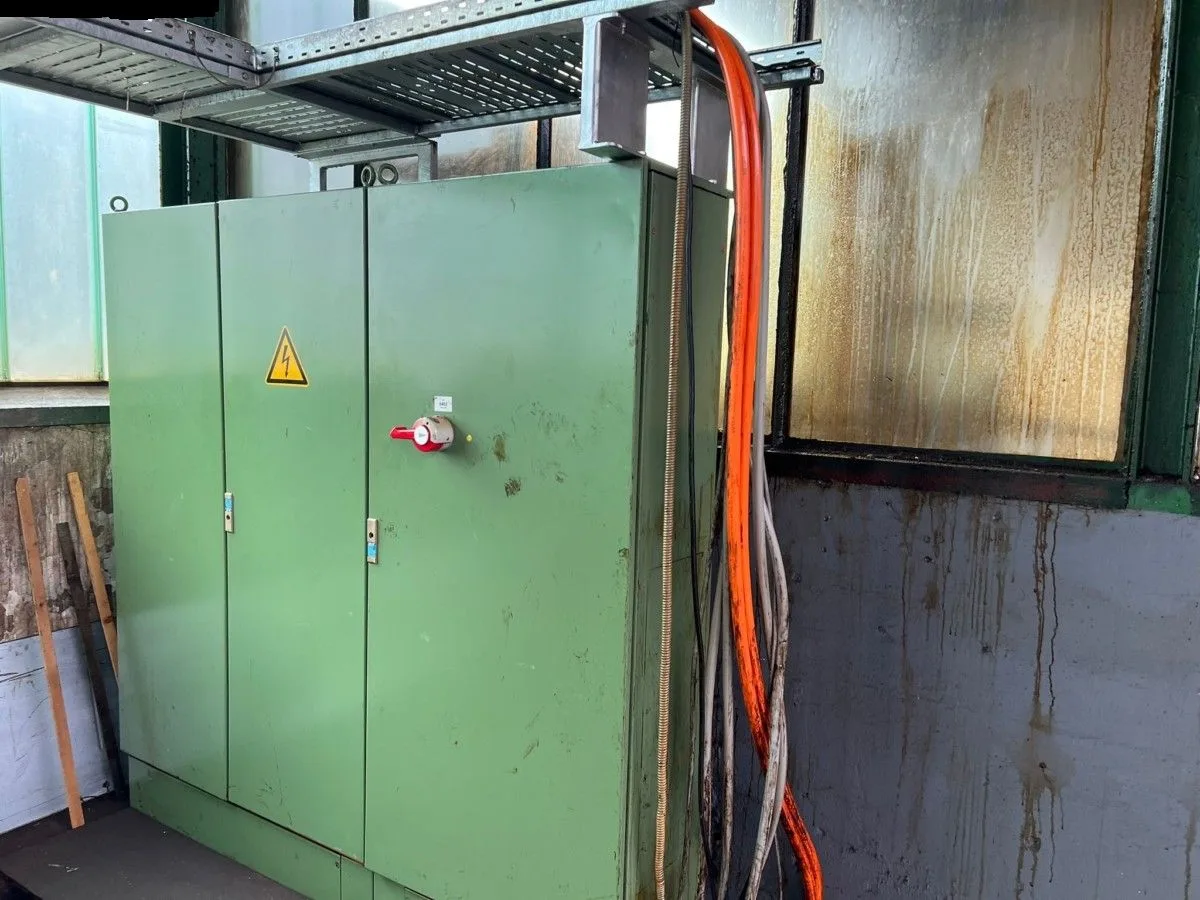

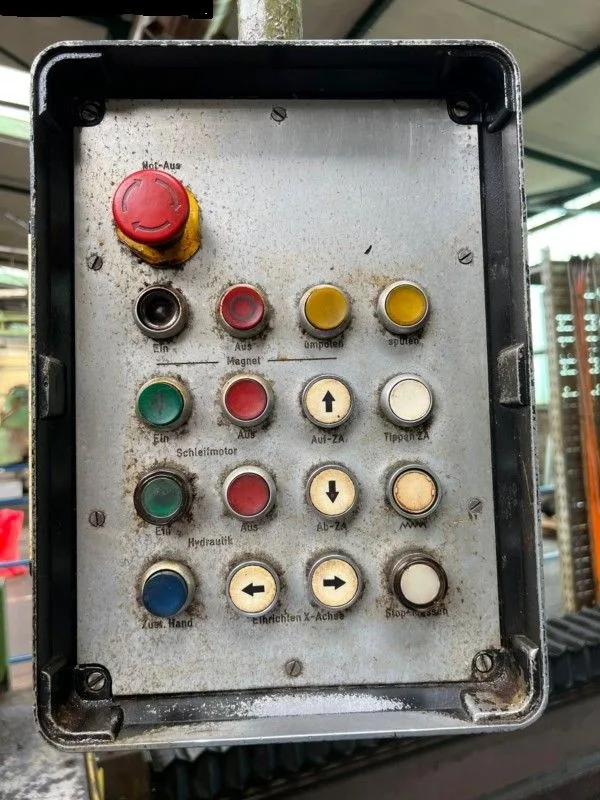

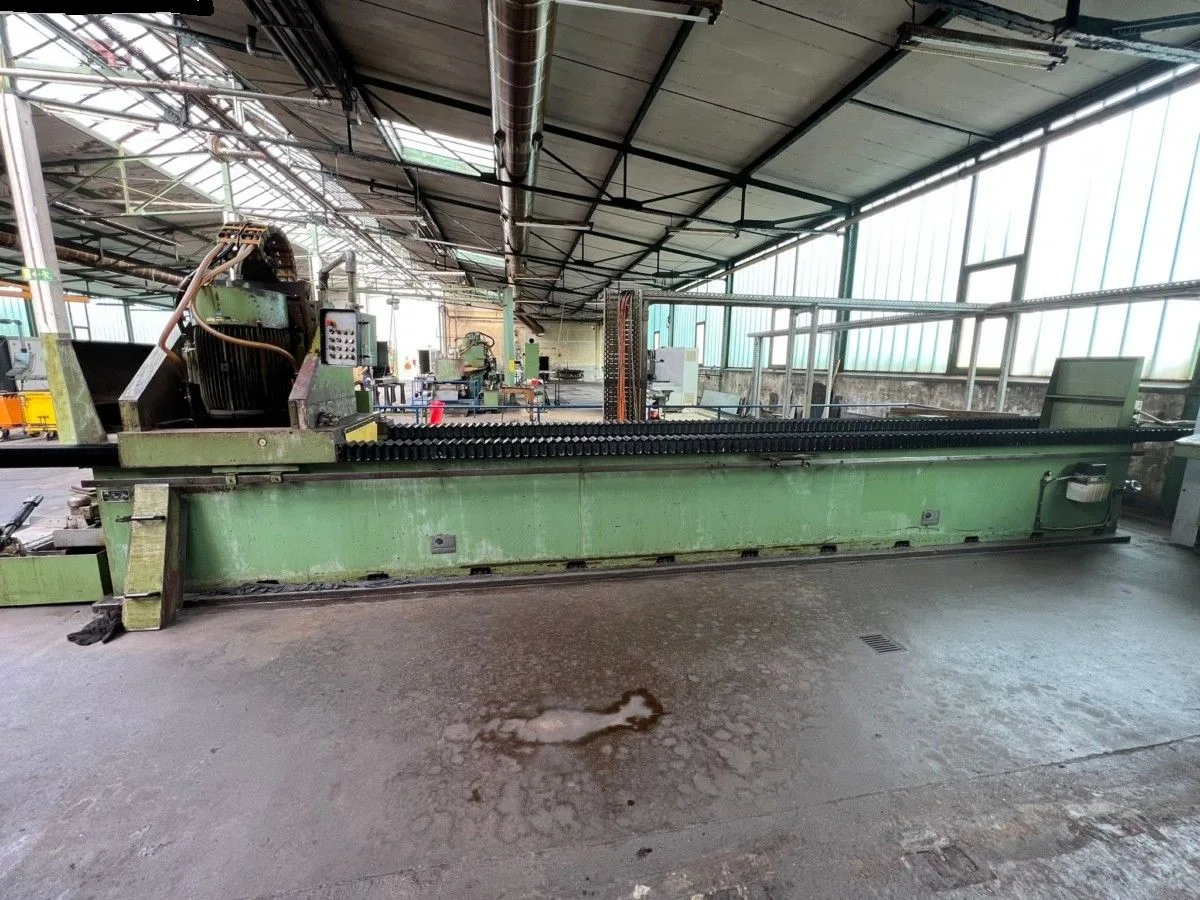

Grinding Machine AR45
Ref. No.67
- Brand
- REFORM
- Model
- AR45
- Condition
- used
Grinding Length:4500 mm
Grinding Width:300 mm
Workpiece Height:250 mm
Segment Head Diameter:560 mm
Spindle Diameter:120 mm
Spindle Speed:0 – 730 RPM
Max Torque:719.5 Nm
Motor Power:55 kW
Feed Rate:2000 – 35000 mm/min
Swivel Range:±90°
Additional Swivel Range:2°

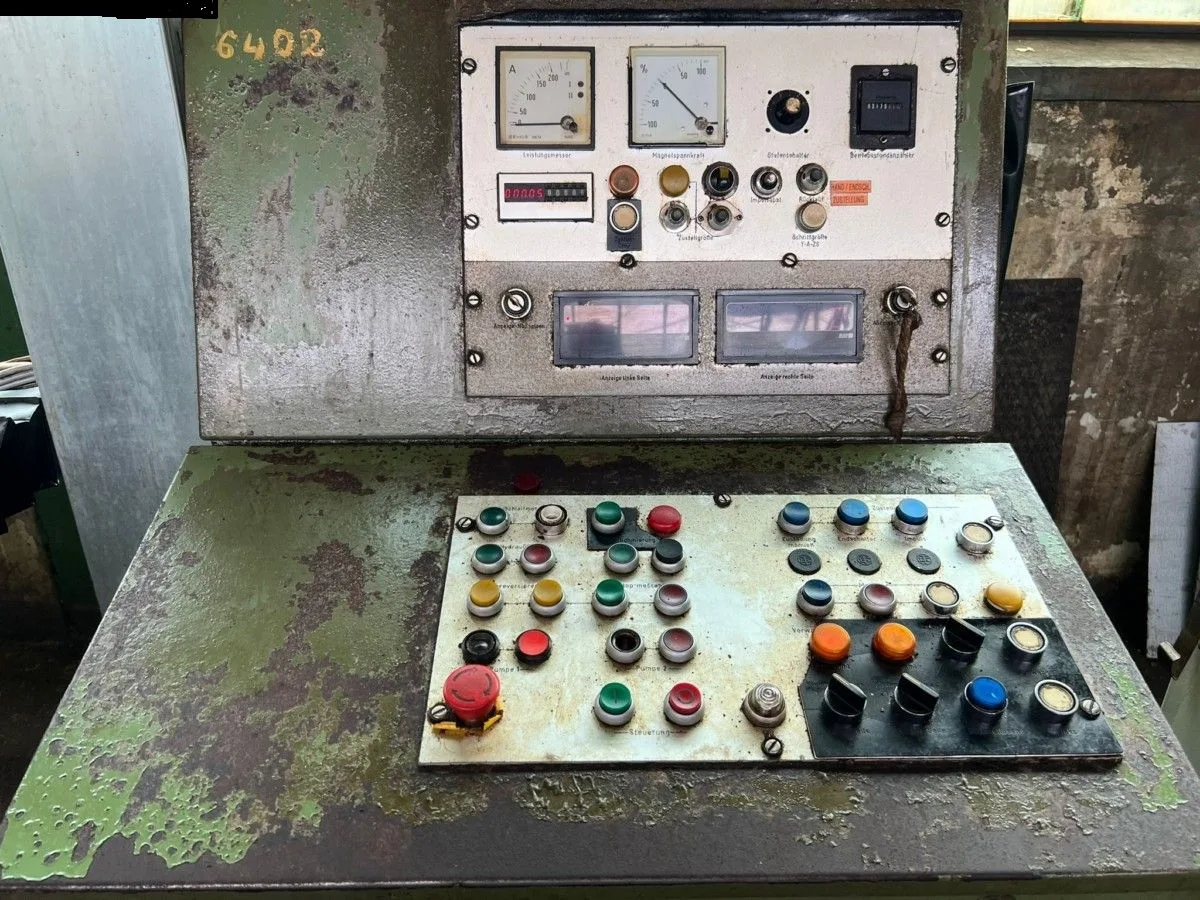

Control:BBC
Baumüller Drives
Marposs Measuring System
Hydraulic Clamping
Grinding Mist Extraction
Cleaning System
Machine specifications
- Manufacturer
- REFORM
- Model
- AR45
- Condition
- used
- Name
- GRINDING MACHINE – AR45
- Brand
- REFORM
- Model
- AR45
- Category
- Grinding Machines
- Feed Rate
- 2000 – 35000 mm/min
- Max Torque
- 719.5 Nm
- Motor Power
- 55 kW
- MachineType
- Conventional
- Swivel Range
- ±90°
- Spindle Speed
- 0 – 730 RPM
- Grinding Width
- 300 mm
- Grinding Length
- 4500 mm
- Spindle Diameter
- 120 mm
- Workpiece Height
- 250 mm
- Additional Swivel
- 2°
- Segment Head Diameter
- 560 mm
